Complete M20 Rebuild Parts List

Postby M20_fever » Wed Mar 04, 2009 3:35 pm

I have been getting many questions about what is needed to rebuild an M20, so I thought I would post up a complete rebuild parts list for an M20. This list is intended for the B25 and B27 motors, some of this info may apply to B23 and B20 motors but no guarantee. If you need this list to know what you need, you will also need a Bentley manual, so get one.

http://bentlypublishing.com/bmw/


This list starts from the top of the motor and works down.

* These items are only necessary if you find them to be excessively worn or damaged when you pull the motor apart.

** These items can be upgraded depending on the intent of the rebuild.

*** This item is specific to the ‘i’ or ‘e’ motor. Be sure you order the version specific to your motor.


Head/Upper Engine Cylinder Head Gasket Set* ** ***


source: http://www.yiparts.com/data/001002/1-47cf5b6507215.jpg

bmw p/n: 11129059240

Head bolts**


source: http://images.google.com/imgres?imgurl= ... s%3Disch:1

bmw p/n: 11121726478

Intake Manifold Stud to Cylinder Head*


source: http://www.autohausaz.com/search/produc ... %20Washers

bmw p/n: 07129908133; 07129908134; 07129908142

Camshaft* ** ***


source: http://www.bmwpartsweb.com/BMW-Parts/Ca ... 99176.aspx

bmw p/n: 11311716138

rockers* **


source: http://www.bmwpartsweb.com/BMW-Parts-Ca ... Parts.aspx

bmw p/n: 11331271429

rocker eccentrics*


source: http://www.bmwpartsweb.com/BMW-Parts-Ca ... Parts.aspx

bmw p/n: 11331744354

Intake Valve* ** ***


source: http://www.bmwpartsweb.com/BMW-Parts/In ... 99176.aspx

bmw p/n: 11341708895

Exhaust Valve* ** ***


source: http://www.bmwpartsweb.com/BMW-Parts/Ex ... 99176.aspx

bmw p/n: 11341708896

Valve Stem Seal Kit*


source: http://www.pelicanparts.com/cgi-bin/sma ... 09%2F92%29

bmw p/n: 11349059172

Valve Springs inner/outer* ** ***


source: http://www.msportster.co.uk/detail.asp?cat=9&offset=-1

bmw p/n: 11341706583 (b25 inner); 11341706584 (b25 outer); 11341267721 pre-12/86 b27; 11341708895 post-12/86 b27

throttle body gasket***


source: http://www.autohausaz.com/search/produc ... d%20Gasket

bmw p/n: 13541289576

Exhaust Manifold Stud*


source: http://www.autohausaz.com/search/produc ... %20Washers

bmw p/n: 07129908134

Exhaust Manifold Gasket w/ heat shield*


source: http://www.turnermotorsport.com/html/de ... 1621728489

bmw p/n: 11621728489

Exhaust Manifold Gasket w/o heat shield*


source: fap99.com

bmw p/n: 11621723877

Block/Lower Engine Lower engine gasket kit***


source: http://www.pelicanparts.com/cgi-bin/sma ... 1984-91%29

bmw p/n: 11111730875

Timing belt kit w/tensioner*


source: http://www.turnermotorsport.com/html/de ... 9-9320-000

bmw p/n: 11311713361(belt); 11311711153(tensioner); 11311267746(tensioner spring)

Water pump*


source: http://www.schmiedmann.com/3_series/E30 ... /page2.htm

bmw p/n: 11519070759

Expansion Plug; 45mm Diameter Freeze Plug


source: http://www.koalamotorsport.com/products ... 1+-+Engine

bmw p/n: 11111714712

Pistons* ** ***


source: http://www.autohausaz.com/search/produc ... 622@Piston

bmw p/n: 11251735755 (note: this p/n is for stock b25 83,980MM piston, b27 piston p/n: 11251287039, oversize pistons are available for all m20 engines)

Connecting Rods* ** ***


source: http://www.vacmotorsports.com/catalog/v ... t-of-6.htm

bmw p/n: 11241288386 (135mm b25); 11241278194 (130mm b27)

Main rod bolts**


source: http://www.pelicanparts.com/bmw/catalog ... an_pg5.htm

bmw p/n: 11241713342

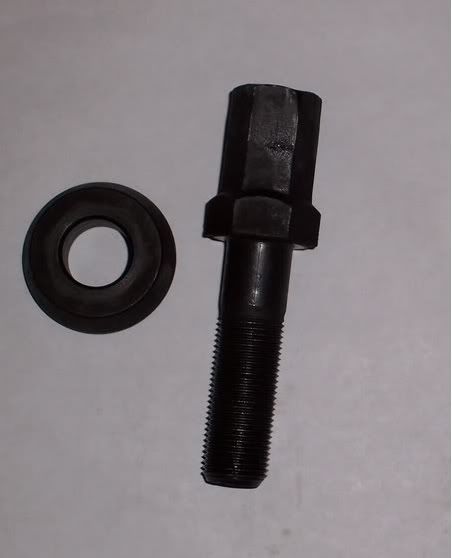

Crank Main Bolts **


bmw p/n: 11111735525

Crank Rod Bearings** ***


source: http://www.nexternal.com/vacmotors/imag ... -M10-L.JPG

bmw p/n: (note: since there are numerous bearing sizes depending on crank wear I will not list a p/n. If you don't know how to size your bearings bring it to a professional, or search)

Crank Main Bearings** ***

<see rod bearings>

bmw p/n: (note: since there are numerous bearing sizes depending on crank wear I will not list a p/n. If you don't know how to size your bearings bring it to a professional, or search)

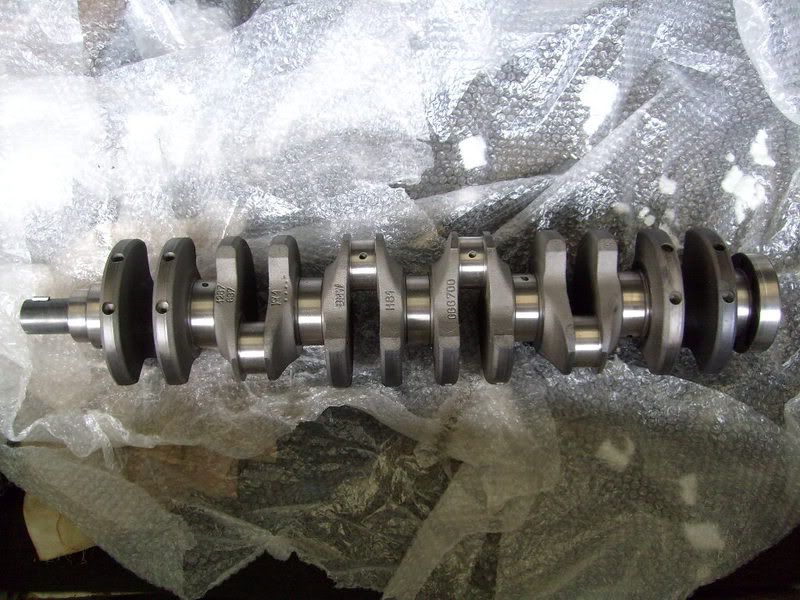

Crank* ** ***


source: http://www.bmwe21.net/forum/viewtopic.php?t=9490

bmw p/n: 11211713223 (b25); 11211276341 (b27)

Auxiliary/Intermediate Shaft Oil Seal


source: http://www.autohausaz.com/search/produc ... Oil%20Seal

bmw p/n: 11121285609

Oil Pan Bolt


source: http://www.ultimategarage.com/shop/index.php?cPath=49_300

bmw p/n: 07119915031

Oil Pump


source: http://www.autohausaz.com/search/produc ... 1411720898

bmw p/n: 11411720898




Cylinder Head Gasket Set* ** *** – This is a must, and includes most of what you will need as far as top end gaskets and seals go. Recently some have complained that the kits do not include everything so keep all your old gaskets and seals to be sure you replace anything not included in the kit. Depending on the intent of your rebuild there are several options regarding upgrading the head gasket, search.

Fuel injector o-rings - These are being listed seperately becasue they are not always included in cylinder head gasket sets, but should be replaced.

Head bolts** - Always replace head bolts. Depending on the intent of the rebuild head studs are highly recommended to replace OE non-stretch bolts.

Intake Manifold Stud to Cylinder Head; 8x45mm* - These are optional depending on their condition, mine where rusted and the threads didn’t look very good so I replaced them.

Camshaft* ** ***- Cams rarely wear out, but it does happen. Be sure you get the correct cam for your motor. There are many upgrade options for M20 cams, search.

Rockers* **- Only required if any of yours are broken/cracked or the cam wear pad is severely worn upon inspection. Depending on the intent of the rebuild there are upgraded billet rockers available that eliminate the issue of them breaking at 7k+ rpm that some have experienced.

Rocker eccentrics- These should be replaced when ever the head is rebuilt; they are cheap and can prevent proper valve adjustment if worn.

Intake Valve* ** *** / Exhaust Valve* ** *** - These are only needed if you find they are worn or damaged, you will need these if your rebuilding due to a snapped timing belt. Note that there is a difference between ‘e’ and ‘i’ valves so order the correct ones. There are oversized valves available depending on the intent of your rebuild, search.

Valve Stem Seal Kit- Only needed if you’re removing/replacing the valves.

Valve Springs inner/outer* ** ***- only needed if they are too far out of spec to be shimmed. There are upgraded single springs available that are intended to replace the ‘i’ double springs, though I have never heard of anyone running them. ‘e’ motors run single springs, but are not the same as the single race springs that are offered by some vendors.

Throttle body gasket***- I listed this gasket separate because if I remember correctly my kit did not include it, do some investigation as to whether your kit includes it before ordering this part separately.

Exhaust Manifold Stud; 8x40mm*- Just like the intake studs they should be replaced if rusted or the threads are damaged.

Exhaust Manifold Gasket w/ heat shield* –Just like the throttle body gasket, may not be included in all top end gasket kits so check before you order. Depending on the intent of your rebuild individual exhaust manifold gaskets w/out the heat sheild are available with part# 11621723877.

Lower engine gasket kit***- Just like the top end gasket kit, this kit will include most of the gaskets/seals you will need. Keep all your old gaskets/seals to match up with what’s in the kit to be sure you have everything.

Timing belt kit w/tensioner – Always replce the timing belt and tensioner. Since the M20 is an interference motor the timing belt should be replaced any time tension is relieved from the belt.

Water pump – This should always be replaced on any rebuild. The timing belt and water pump have the same maintenance interval, so they should always be done at the same time. Do it while you have everything apart.

Expansion Plug; 45mm Diameter Freeze Plug – These are prone to rust from the inside, so even if they appear to be solid from external examination they should always be replaced.

Pistons* ** ***- Like Rods, pistons rarely need to be replaced due to wear, but a snapped timing belt will usually require new pistons. ‘e’ and ‘i’ pistons are drastically different so get the right one for your motor. There are many options for upgrading pistons; most involve upgrading the crank/rods as well, search.

Rods* ** ***- Rods rarely need to be replaced due to wear, but it does happen. Depending on your intent there are many options to upgrade M20 rods including semi-custom rods and numerous other OE BMW rods from other motors, search.

Main rod bolts** - These should always be replaced; upgraded studs are available depending on the intent of the rebuild.

Crank Main Bolts ** These should be replaced, upgraded studs are available.

Crank Rod Bearings** ***/ Crank Main Bearings** *** -These should always be replaced; upgraded coated race bearings are available depending on intent of the rebuild. BMW changed the design of the bearings in later M20’s so be sure you get the right ones.

Crank* ** ***- Cranks rarely wear out, but if you need to replace it be sure you get the correct one for your motor. There are many options to upgrade the crank, but it usually involves changing the pistons/rods as well, search.

Auxiliary/Intermediate Shaft Oil Seal – This seal was not included in my lower end gasket kit, check before you order it separately. New intermediate shaft bearings are available, but unless yours are damaged or out of spec do not remove them, they are a major PITA to replace.

Oil Pan Bolts - Not always needed, but these bolts can be 20 years old and have been known to break.

Oil Pump – Some say replacing this is not necessary, but if you don’t and it does fail you get to pull the oil pan again to replace it at best, at worst you get to rebuild the entire engine again. IMO just do it now, it’s the heart that pumps the life blood through your motor, is it worth taking a chance on a 15+ year old pump?

Intermediate Shaft Bearings - There is a myth out there that these are NLA, not true. I'm including the part numbers for the two bearings needed because they are very hard to find for some reason, at least for me.

11 11 1 264 196 - BEARING BUSH
