M20_fever's spring swap

Postby M20_fever » Sun Apr 10, 2011 6:00 am

Just a quick DIY for those of you wanting to swap out your old, probably stock springs for something a little lower or stiffer, or both.

This writeup assumes you have the car up on jack stands with the tires and brakes removed.

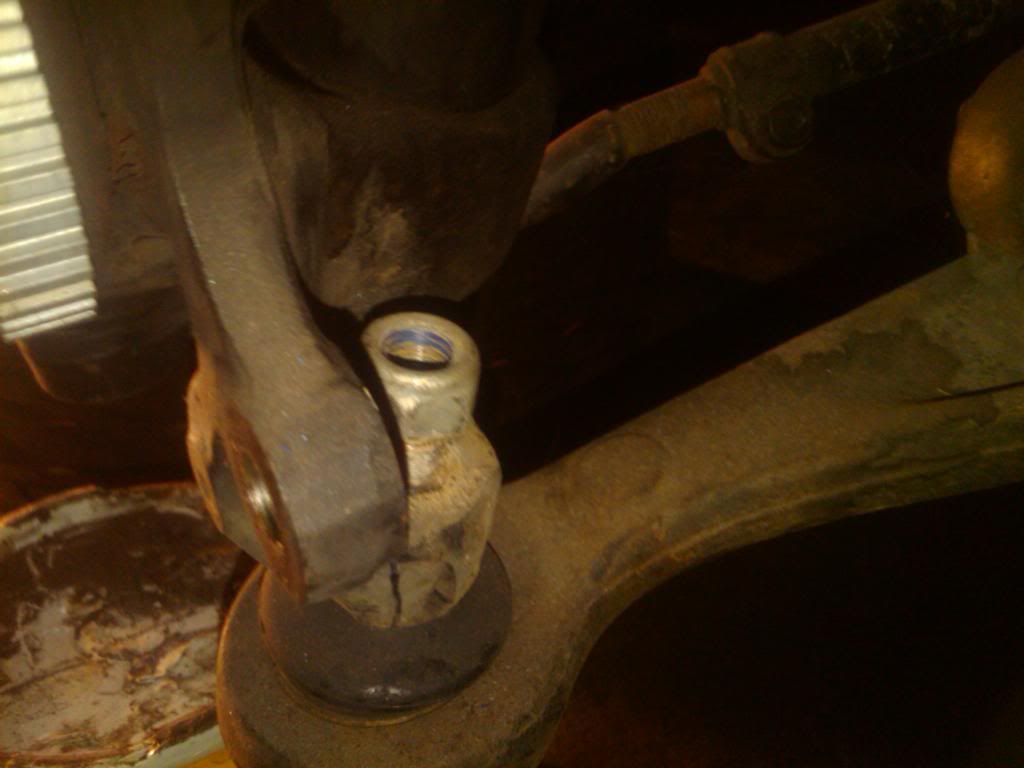

Begin by unbolting the tie rod and swing arm.

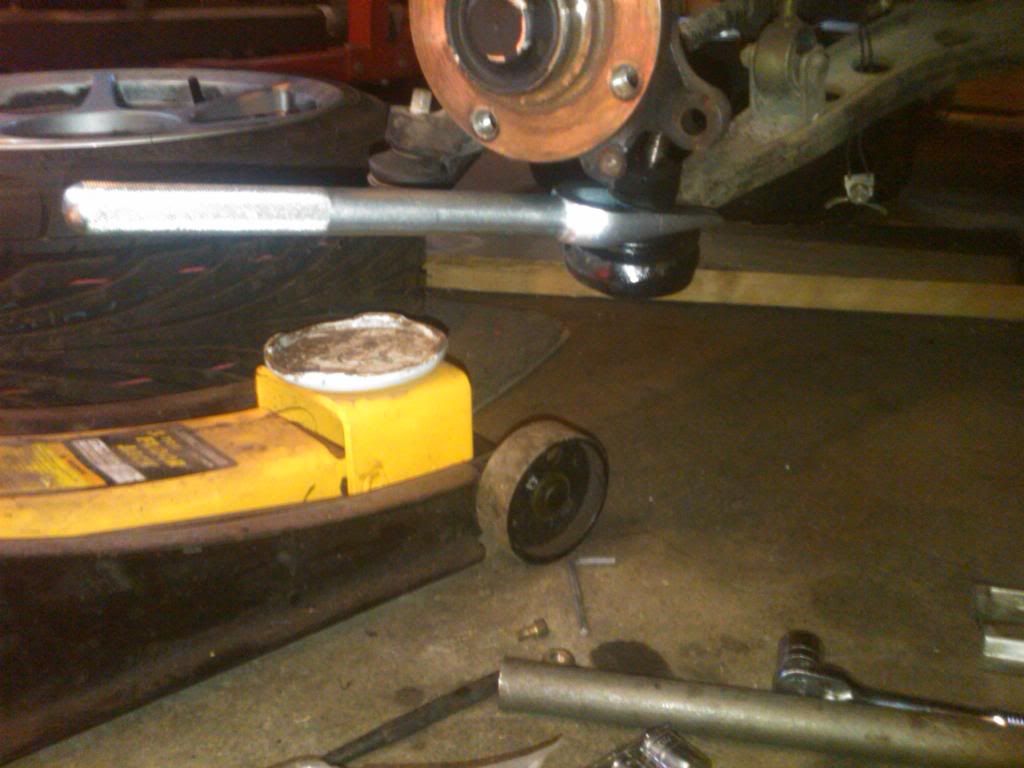

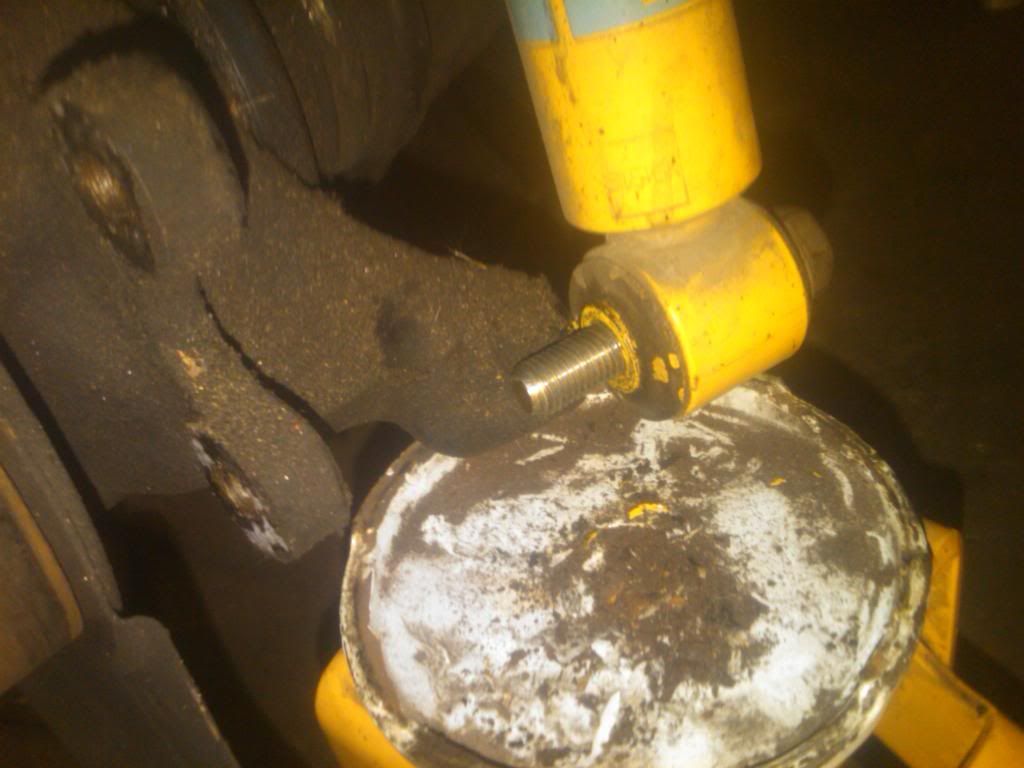

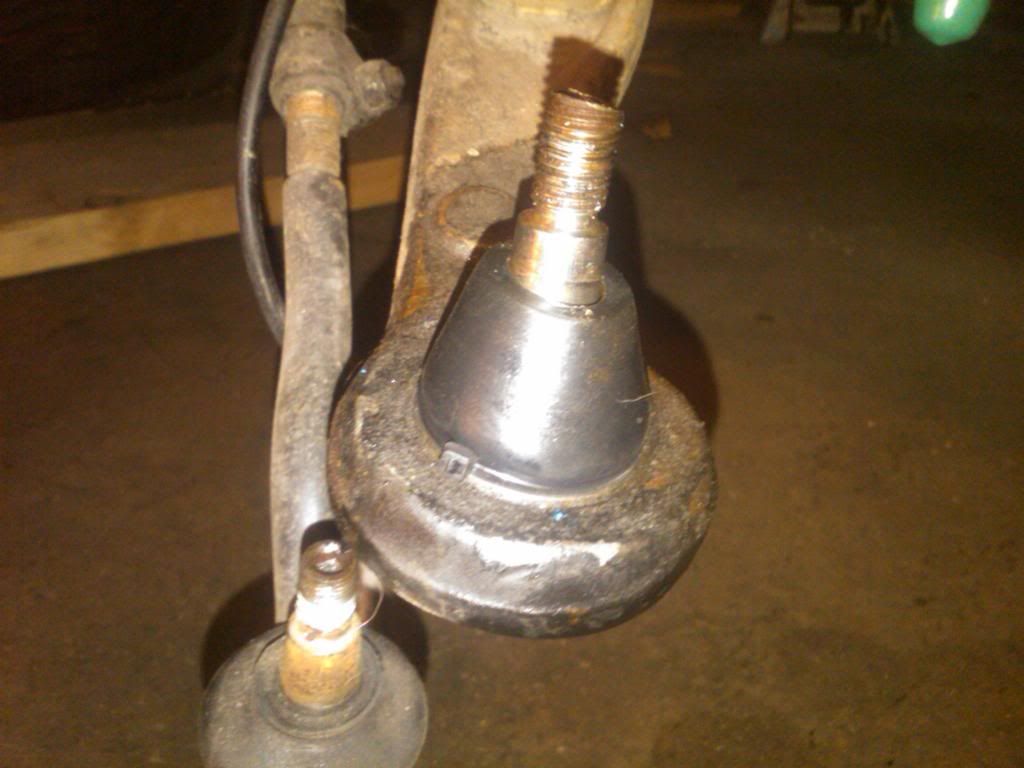

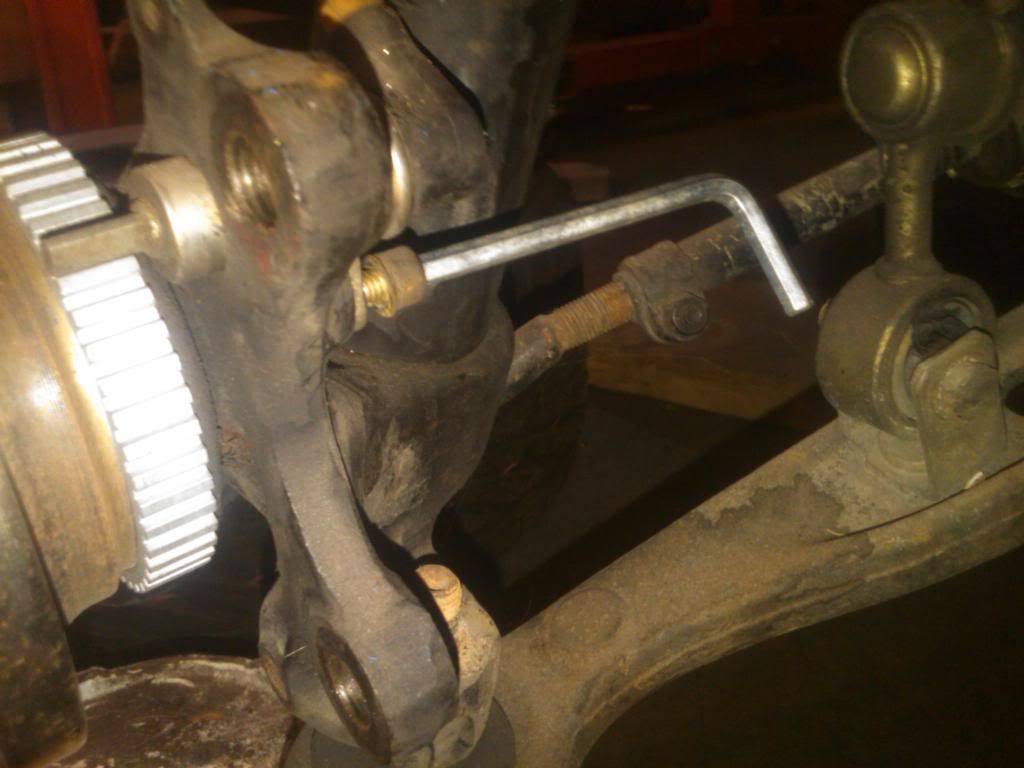

separating the lower ball joint proved to be more difficult than normal. Usually you can just leave the nut on the end of the stud and smack it with a mallet. This one was stuck good, so I had to break out the ball joint separator. Place the tool as seen in the pic and give it a few good whacks and it should pop loose.

remove the ABS sensor.

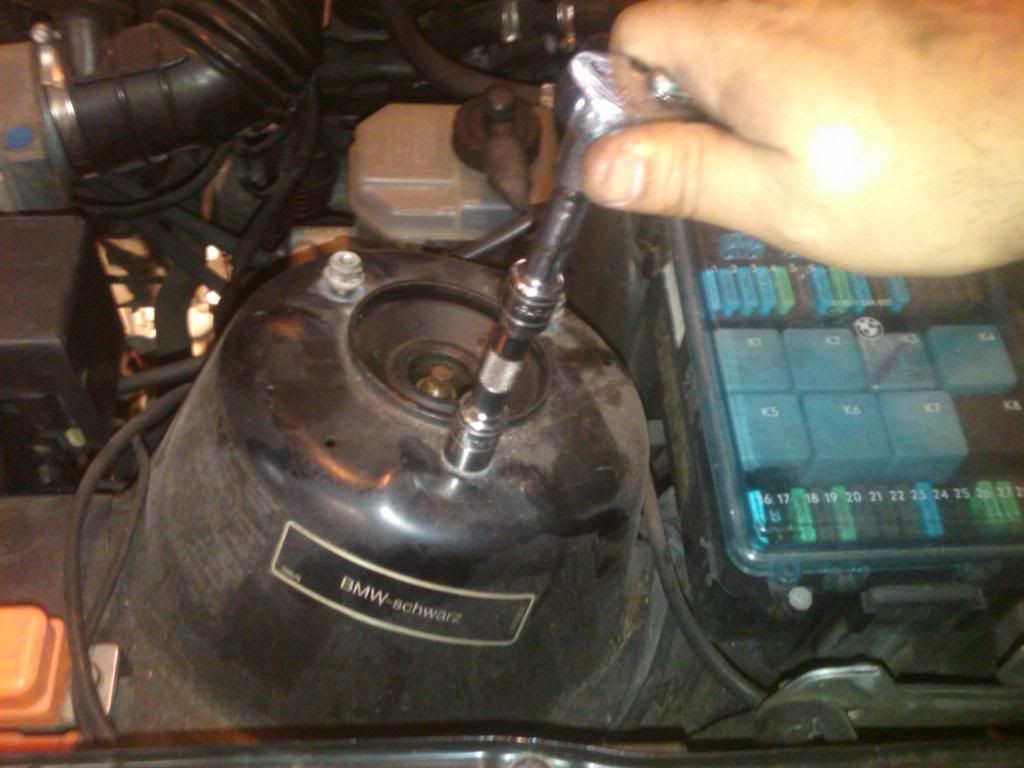

Once the strut is free from the tie rod and swing arm the only thing holding it in will be the 3 nut on the upper strut mount, remove them.

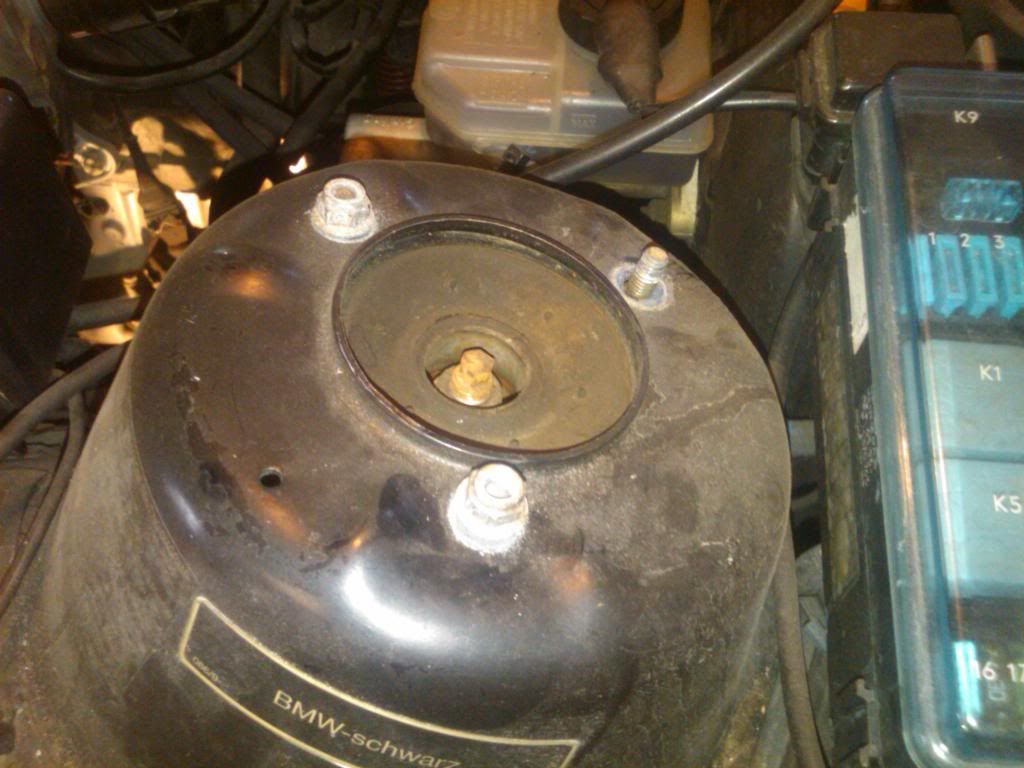

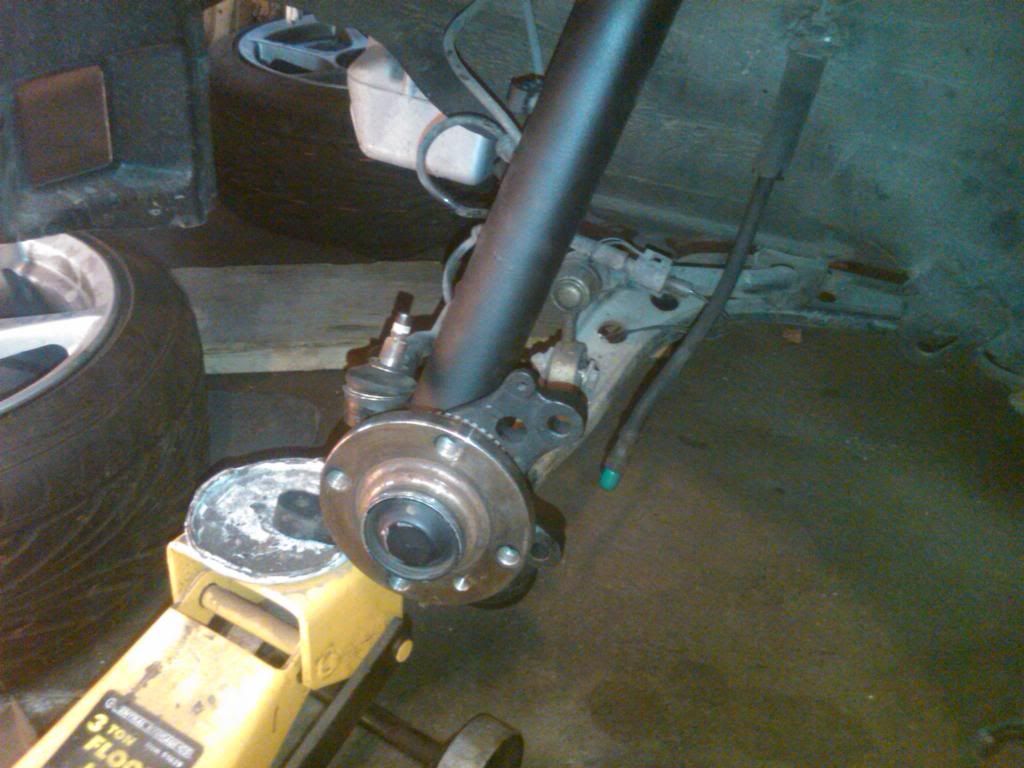

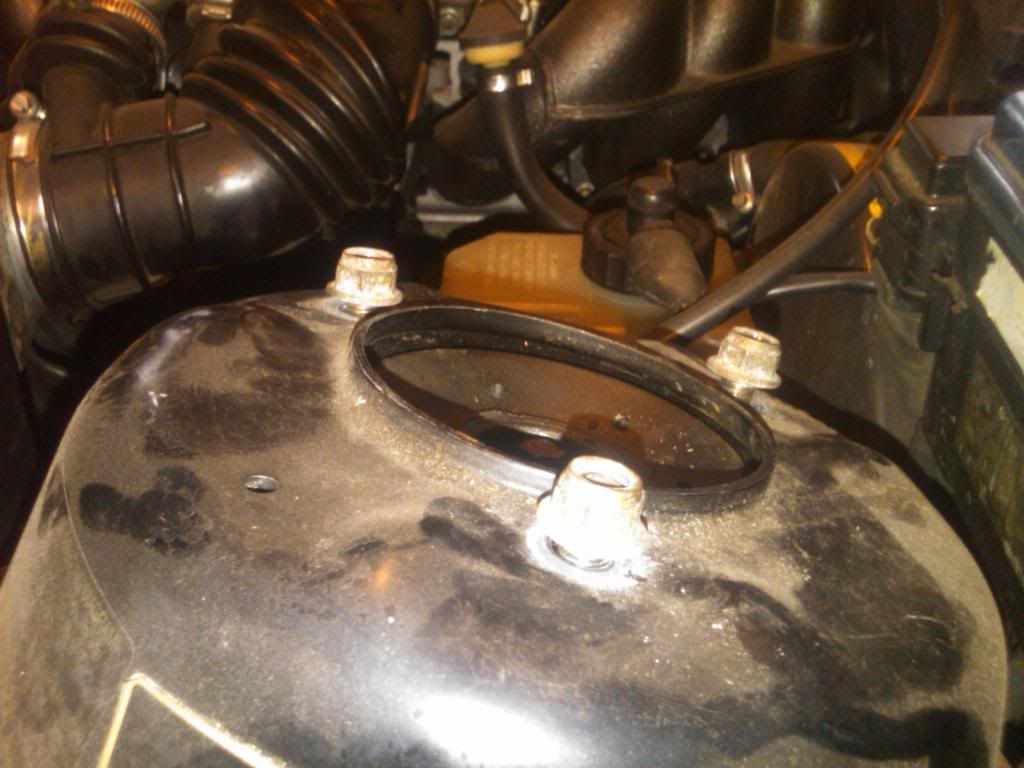

You should end up with this.

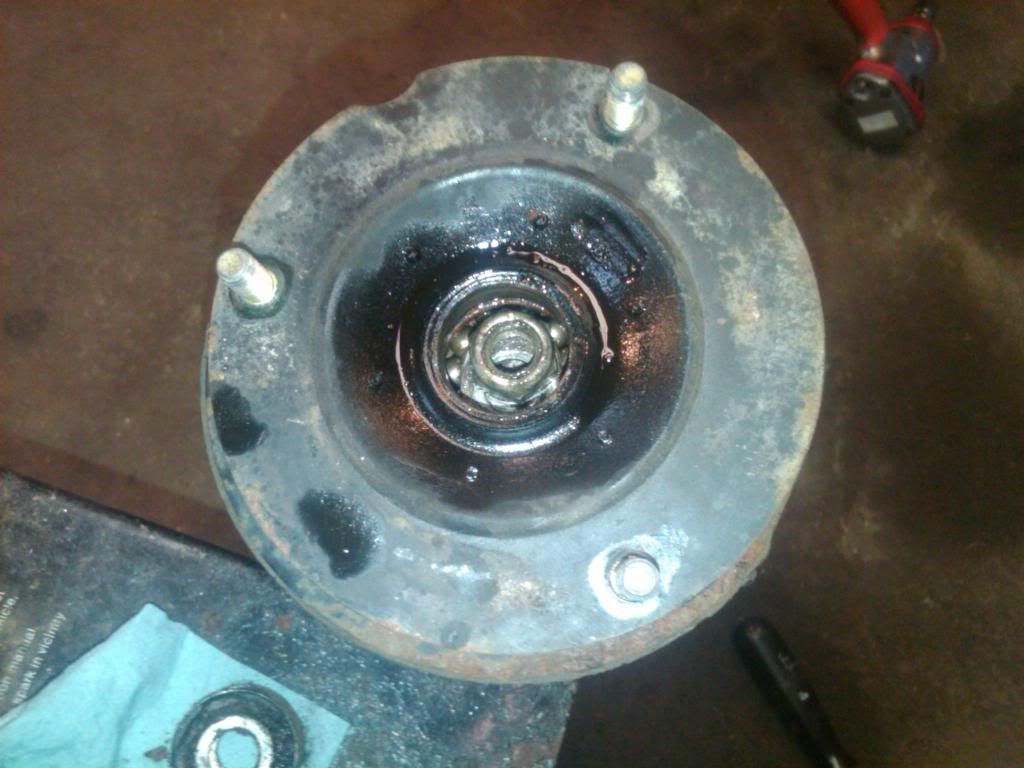

Now you remove the large nut in the center of strut mount.

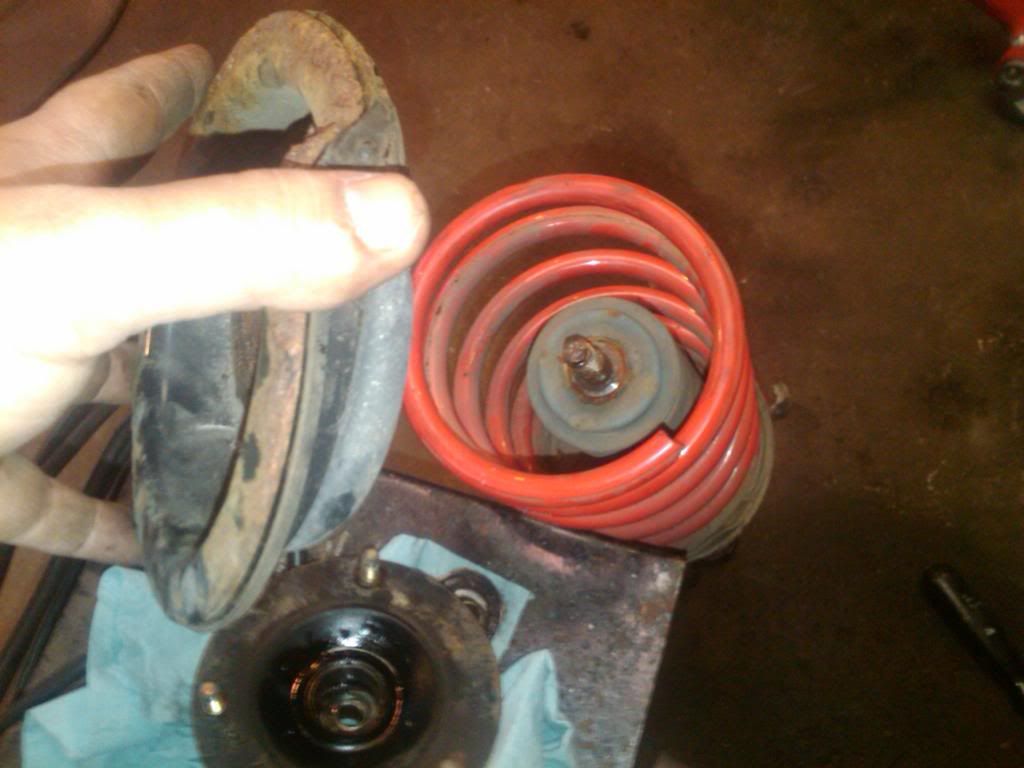

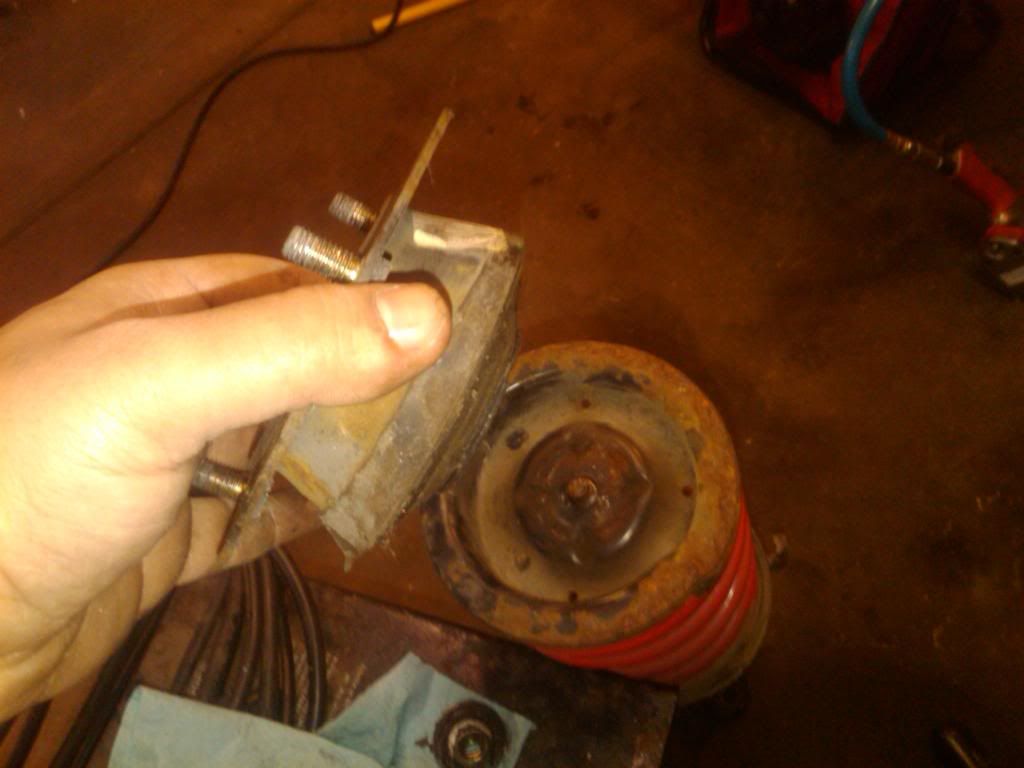

now remove the top hat, it may be stuck on but it should pop off with a little prying with a flat head screw driver.

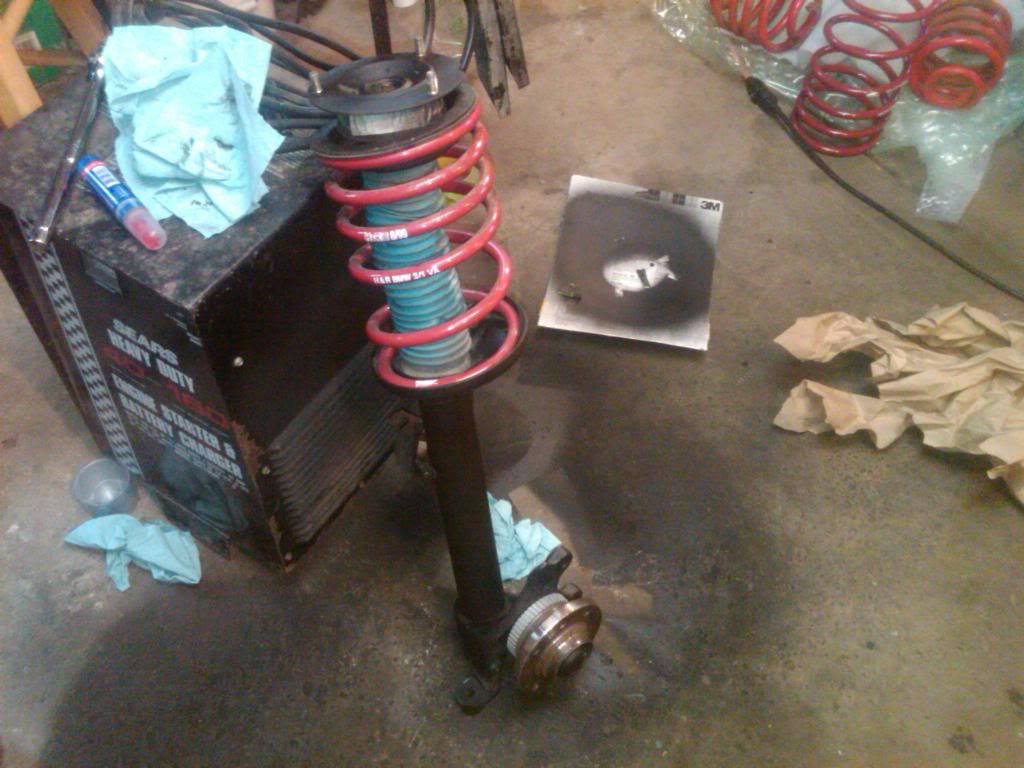

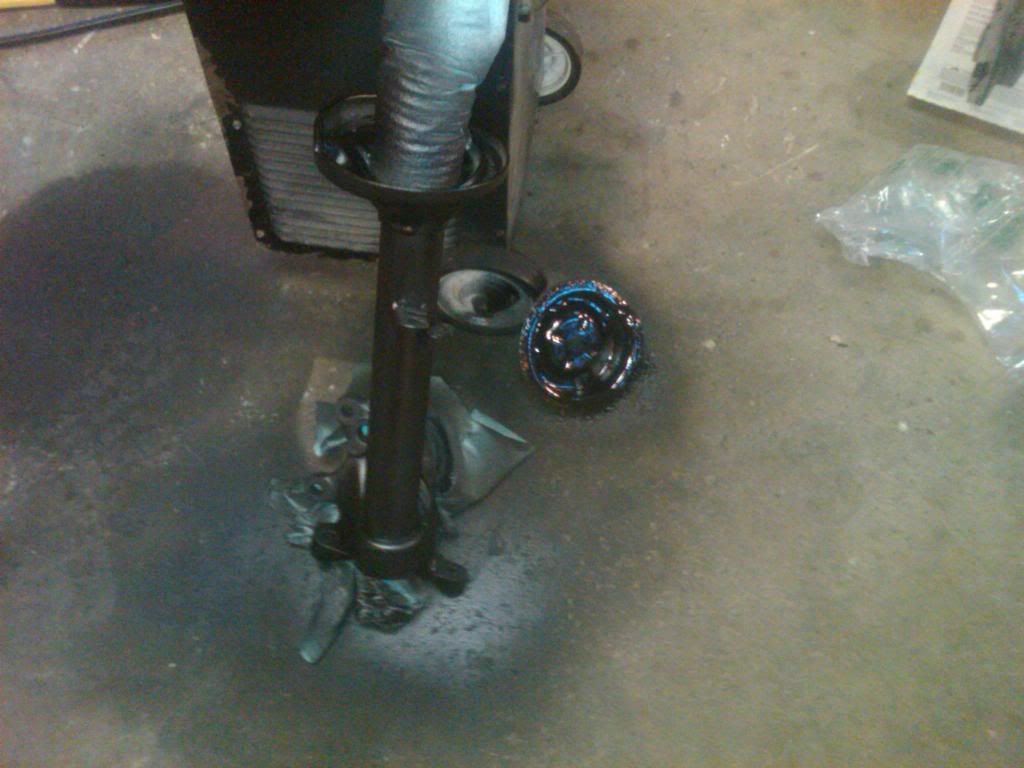

I took the opportunity to clean up my struts and give them a coat of rubberized undercoating.

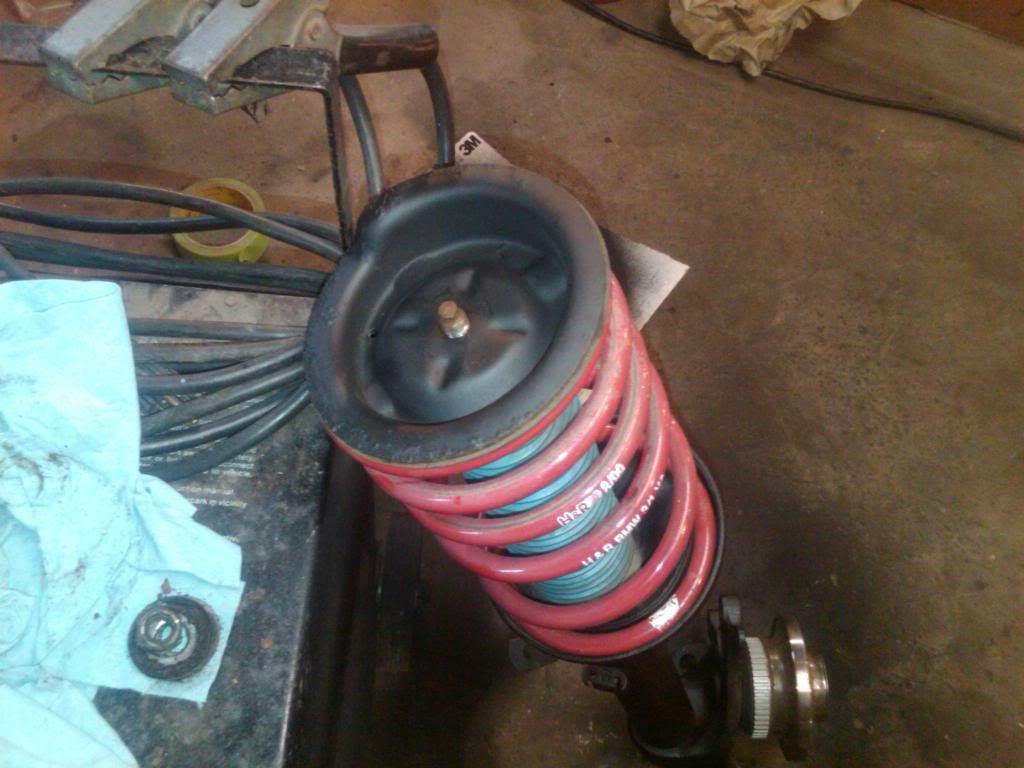

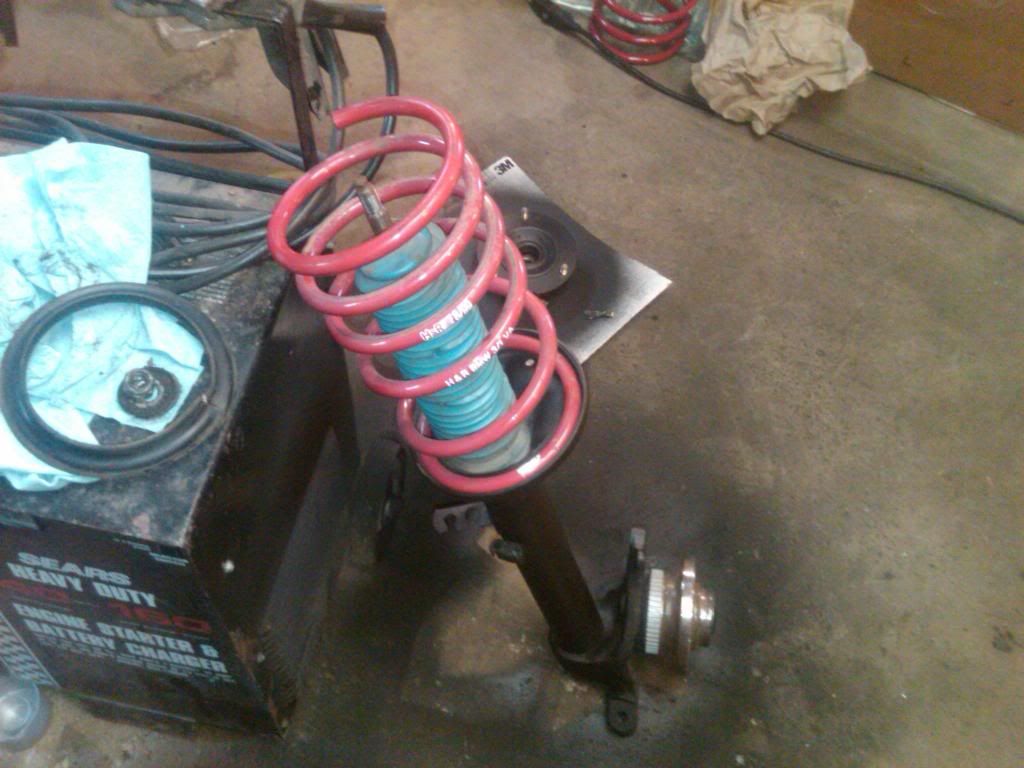

Now set the new spring onto the strut, being sure to seat the spring properly with the end butting into the recess on the spring pad.

replace the spring hat.

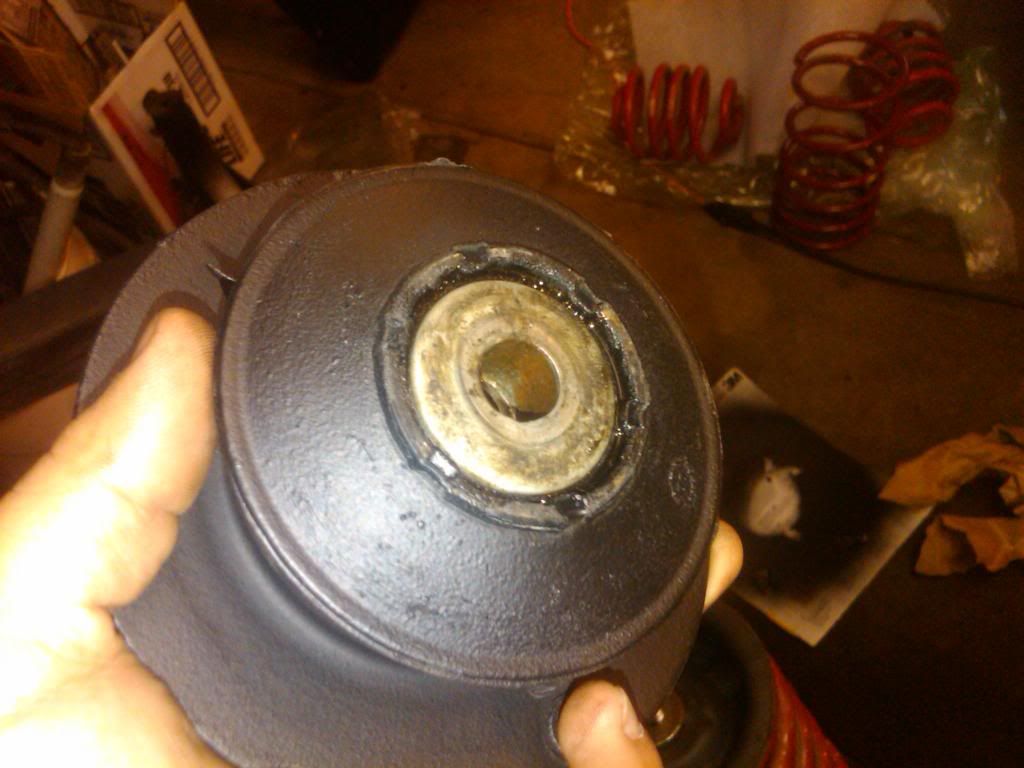

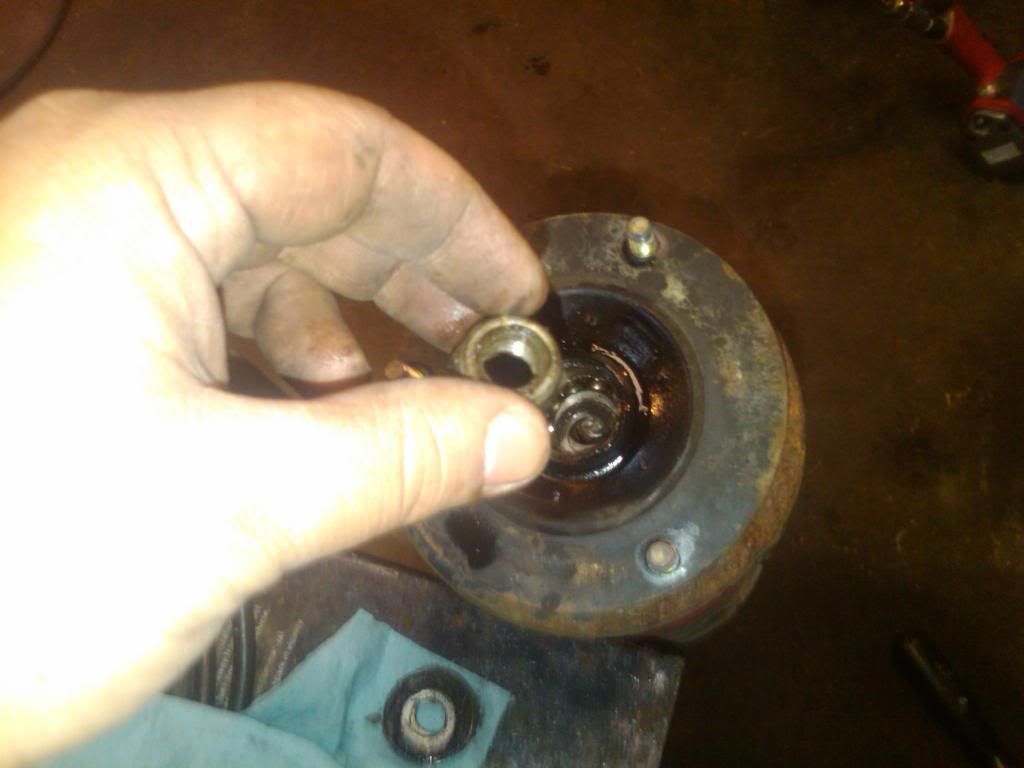

Put the washer back on the strut shaft, and take the washer pictured in my hand and place it back onto the bottom of the upper strut mount.

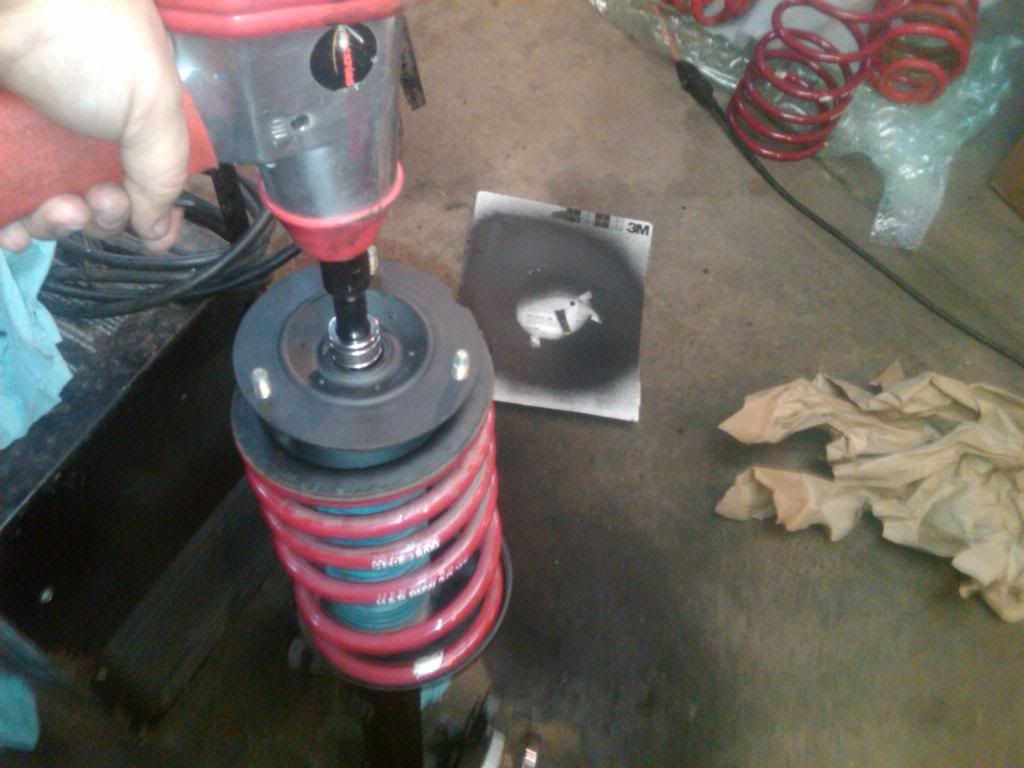

Now put the unit back together by tightening the large center nut. I found it easy to hit it with an impact, but it could be done with a ratchet.

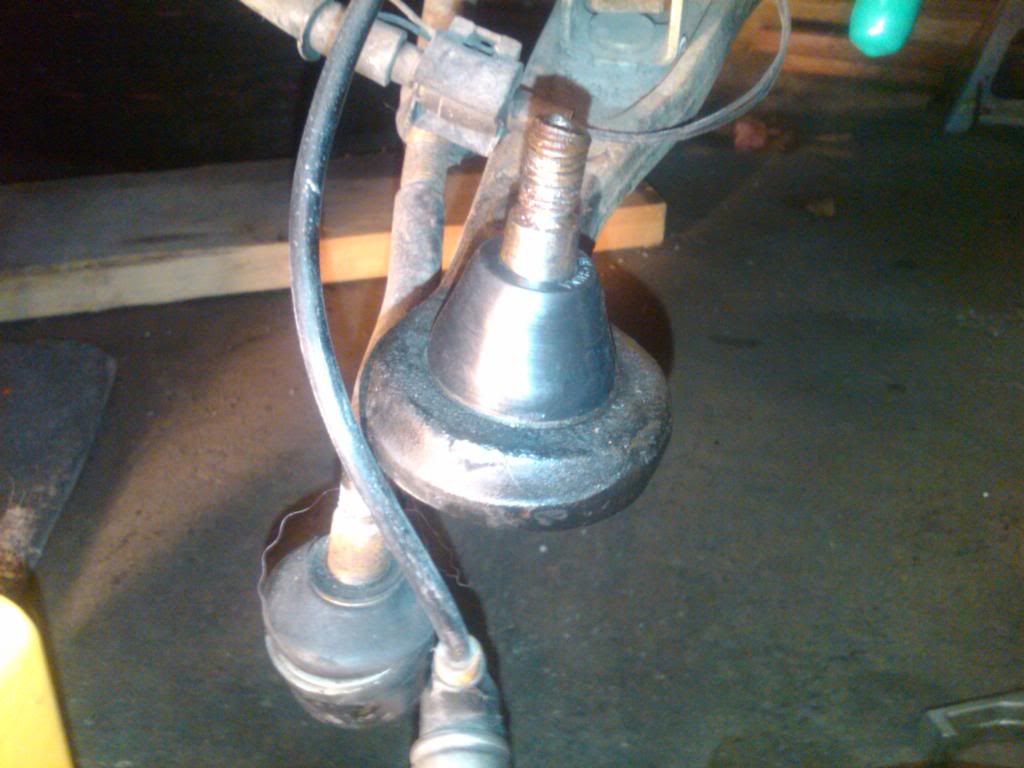

The ball joint boot was torn when I used the separator tool, so I had to replace it with a universal unit.

I zip tied the bottom of the boot so it would stay in place.

Now the strut has to go back in. I used a floor jack to hold the strut in place so I could slowly raise it up lining the upper strut mount studs with the holes in the strut towers. Once the studs begin poking up through the holes start the nuts.

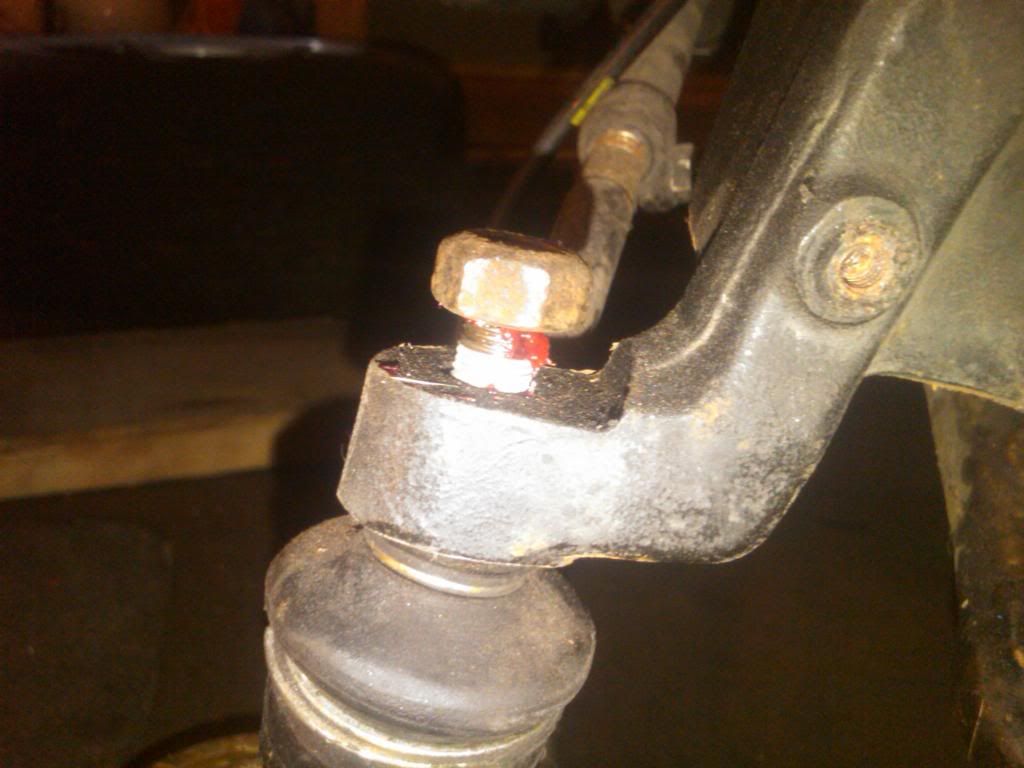

put some red loctite on the tie rod and lower ball joint studs and tighten them down.

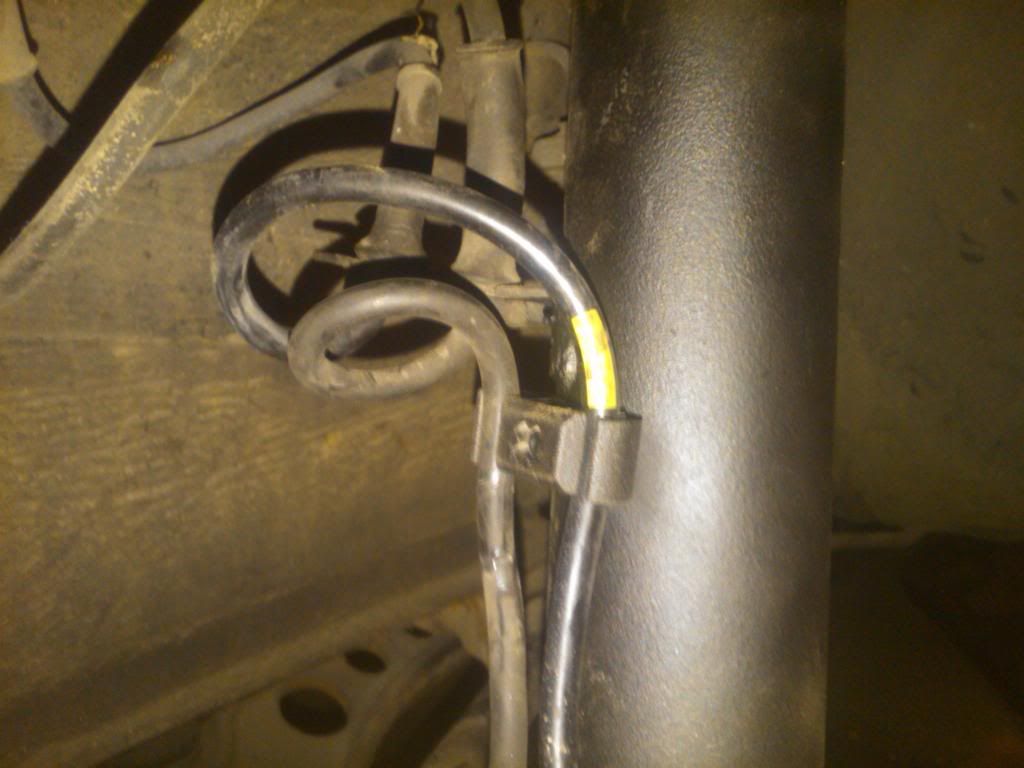

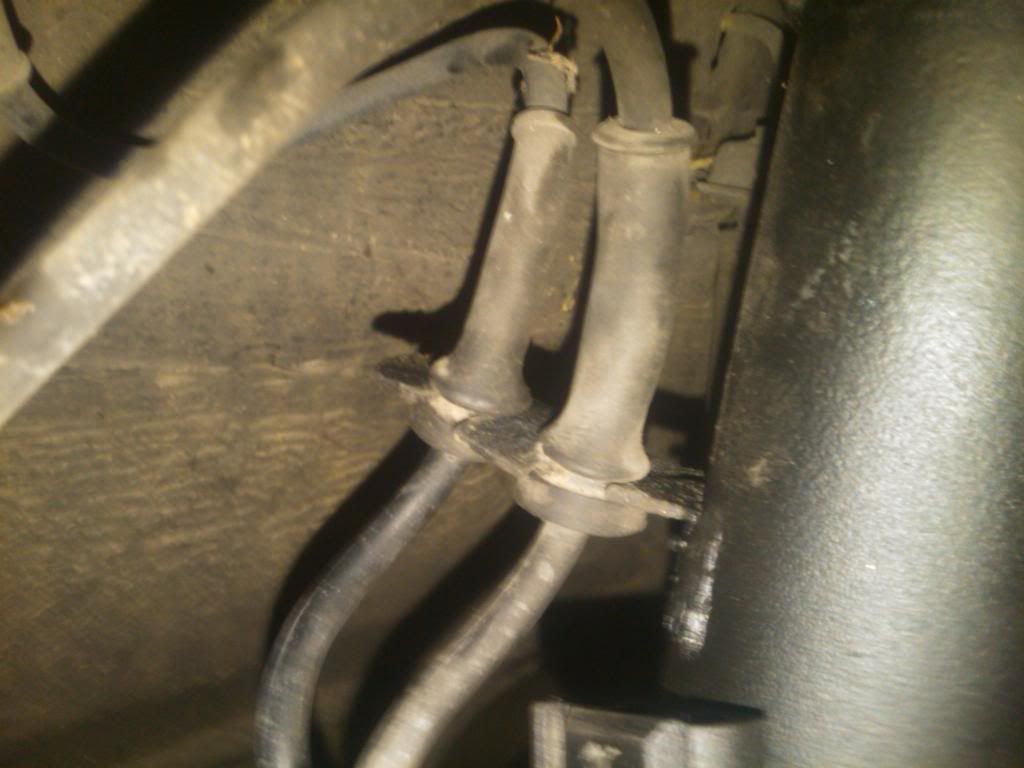

reinstall the ABS and brake wear indicator wires into their keepers on the strut.

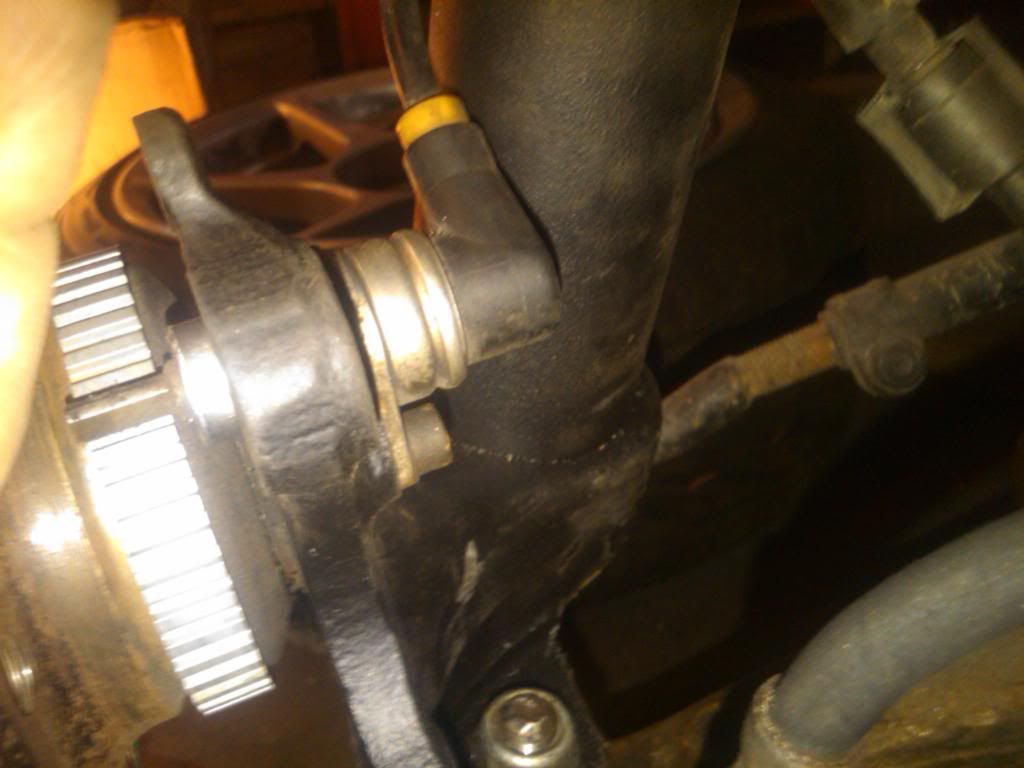

reinstall the ABS sensor.

now tighten down the upper strut mount nuts.

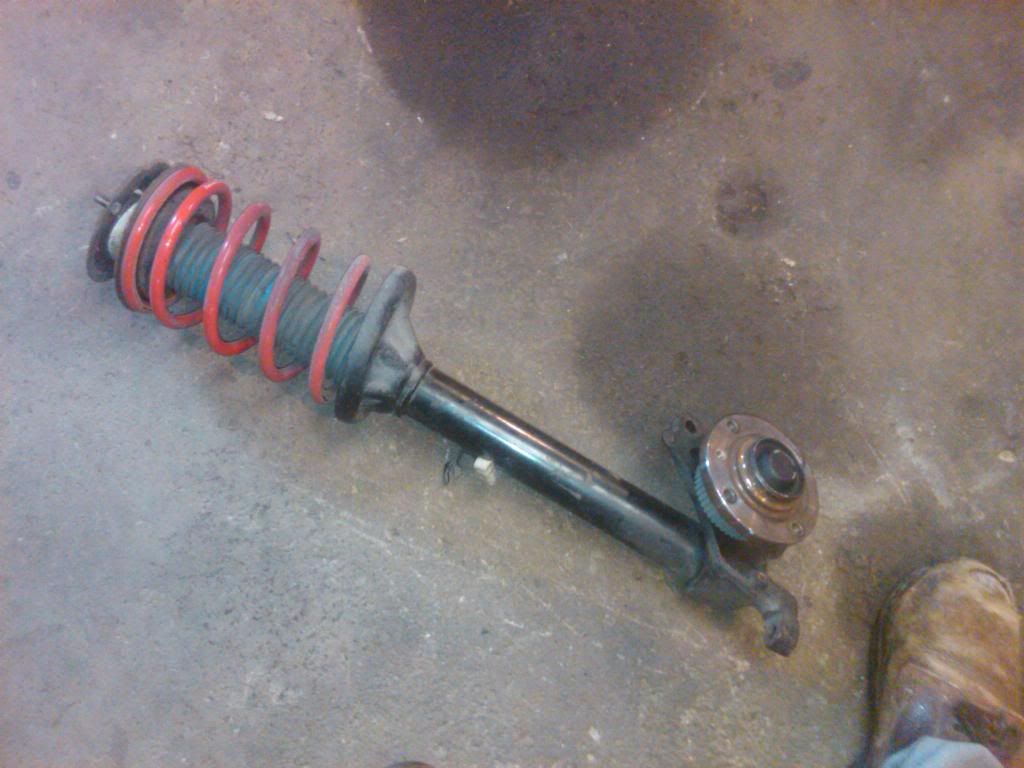

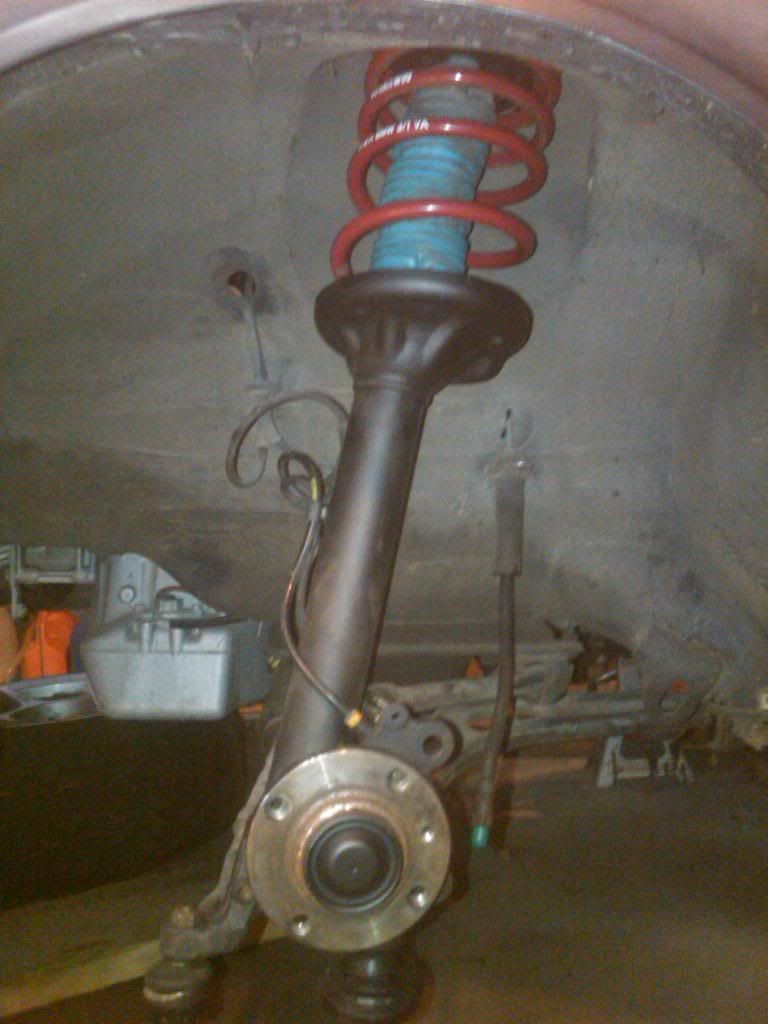

leaving you with this.

onto the rears...

Your going to need a set of spring compressors to do this.

remove the lower shock bolt so the trailing arm can drop fully.

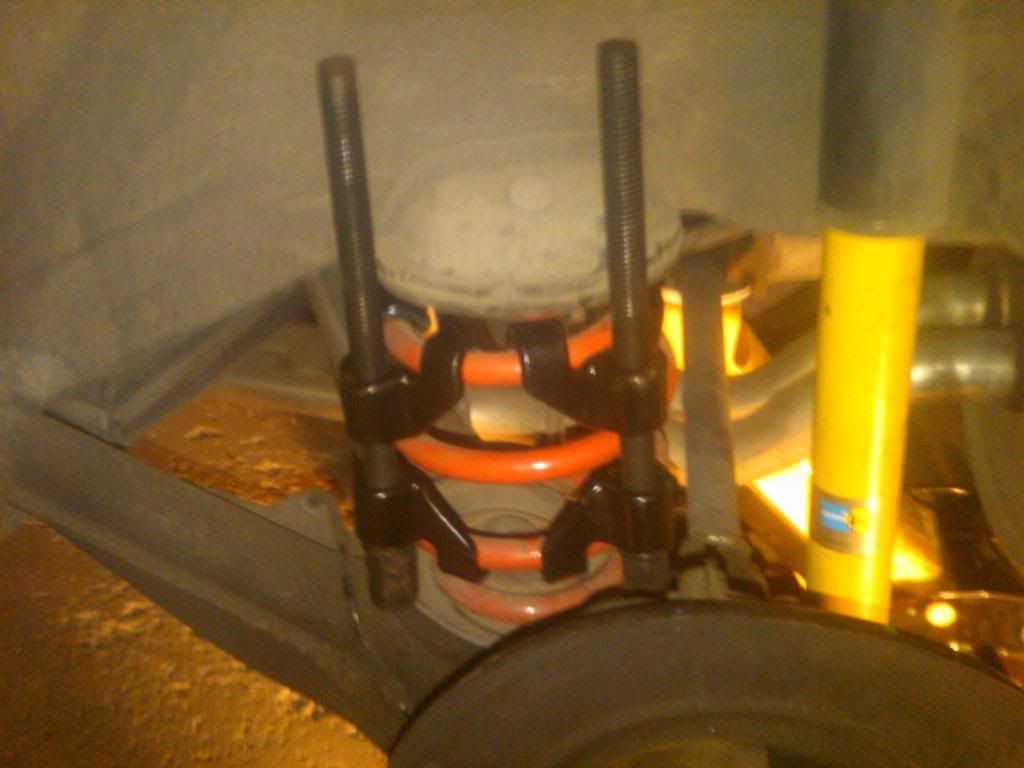

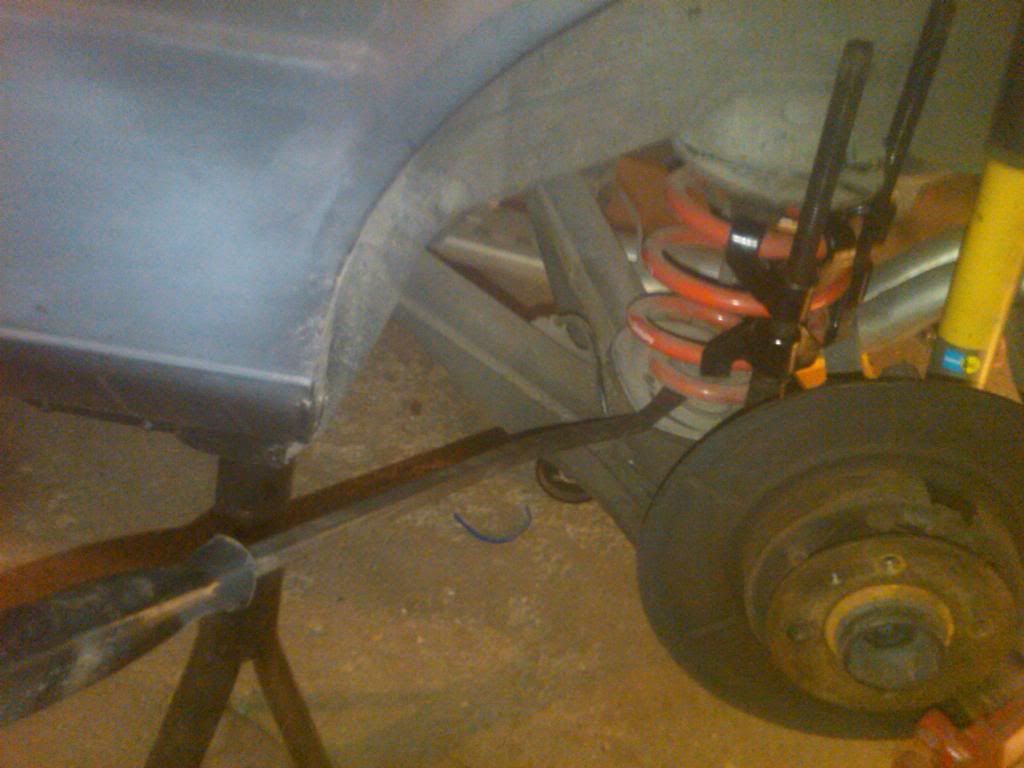

now install the spring compressors, careful to position them so you can fully tighten them and remove the spring.

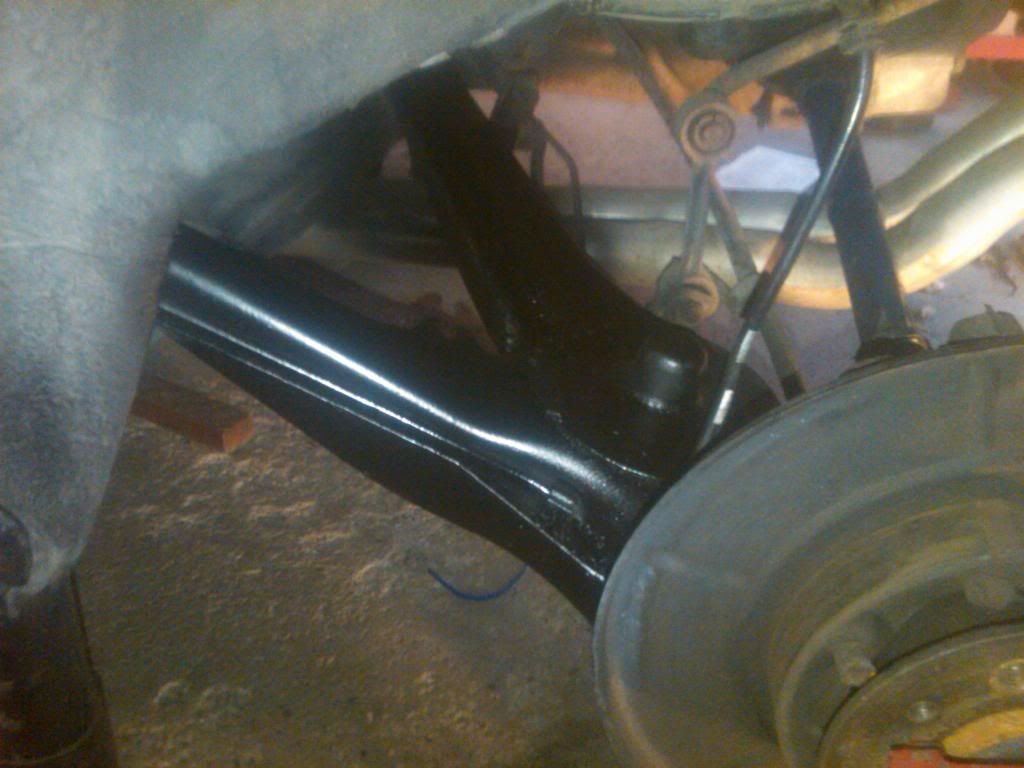

again, I took the opportunity to clean up the trailing arm.

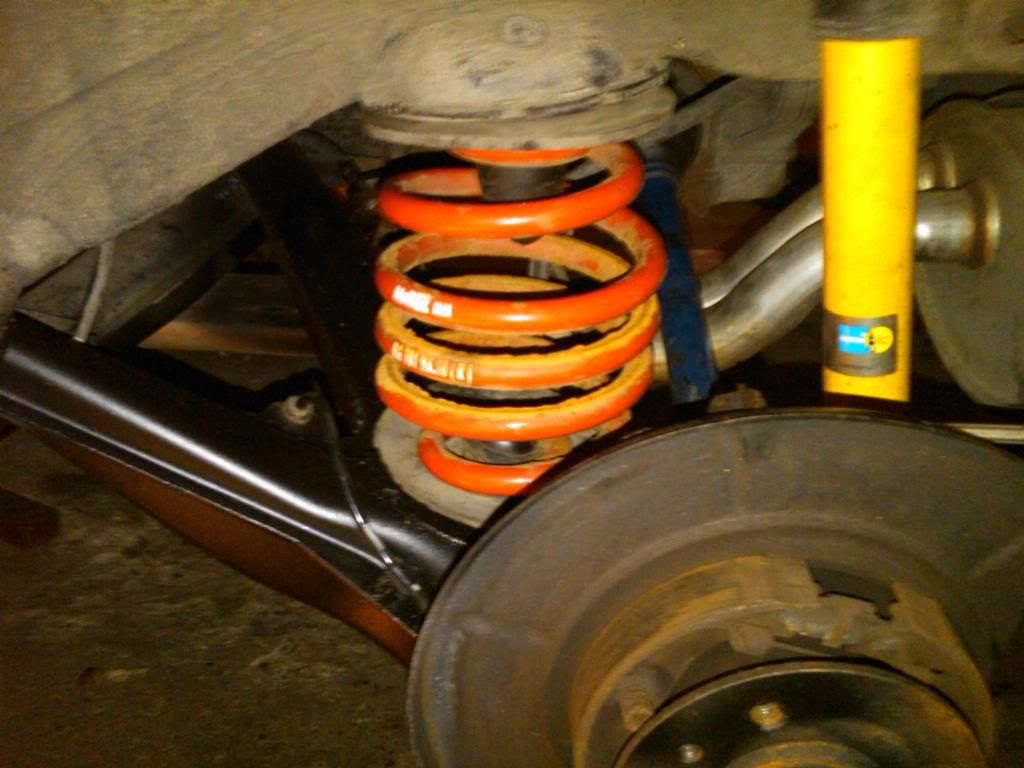

reinstall the new springs reverse of removal. In my case the new springs were short enough to just slip in without the compressors with the trailing arm at full droop.

bolt up the shock, replace the brakes, reinstall the wheels and your ready to go.
