E36 window switch to E30 sunroof mod

Postby M20_fever » Wed Mar 30, 2011 5:26 pm

I've seen lots of people fit e36 window switches to the e30 windows, which I will be doing, but I had never seen anyone fit one to the sunroof switch. I learned a lot about electrical along the way and ended up with a nice clean install that will match the window switches. I used a blue base 5 wire e36 switch, but the small white base switches should work also, though you will need to pull out the continuity tester to find the switched leads.

ok, for blue base e36 switch to e30 sunroof the pin out is:

e30 Green/Blue to e36 Green/White (pin #5)
e30 Green to e36 Blue (pin #3)
e30 Brown to e36 Blue/Green (pin #6)
e30 Brown to e36 Black/Yellow (pin #1)
e30 Black to e36 Black (pin #4)

In order for the blue base (and likely the white base) switch to fit in the sunroof switch spot I had to remove the base of the switch and connect the e30 sunroof wires directly to the e36 switch pins. I also had to use a file to open the switch hole up slightly. Be sure to file it towards the back of the car since opening the front side will leave the switch bezel hanging over the edge of the overhead panel.

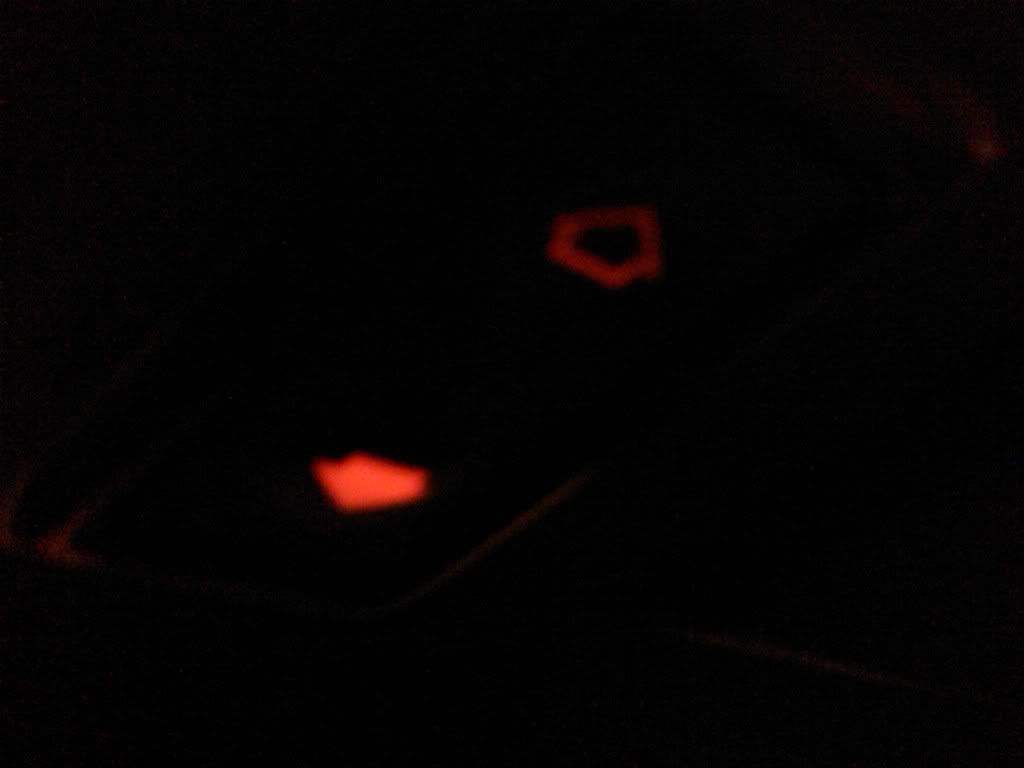

Here are a couple pics of the finished install.
Midwestern Councel C Prepared class champion 2012
North Suburban Sports Car Club C Prepared class champion 2012
HSAX Instructor

GET YOUR E3P GEAR HERE: http://www.cafepress.com/e3pgearshop
User avatar
87e30
I <3 E30's
Posts: 2014
Joined: Wed Oct 27, 2010 5:25 pm
AntiSpam: No
Location: New Jersey

Re: E36 window switch to E30 sunroof mod

Postby 87e30 » Wed Mar 30, 2011 6:16 pm

That reminds me... Every time I visit an e36 at the yards I forget to check the sunroof switch. Is it a regular one, or is it one of the ones that supposedly we can't use for our windows?
Schwarz 5-speed 87 325is (newest project)
Arktisblau 5-speed 86 325e (current DD)
Schwarz 5-speed 87 325e (parts car/LS1 swap?)
Gazellenbeige automatic 85 318i (70,000 miles)
Alpine white 5-speed 87 325is (my first e30, possibly for sale)
99 Suburban
User avatar
M20_fever
Größter Vorsitzender
Posts: 11029
Joined: Fri Feb 27, 2009 1:28 pm
AntiSpam: No
Location: Northern IL

Re: E36 window switch to E30 sunroof mod

Postby M20_fever » Wed Mar 30, 2011 7:04 pm

Don't know, I just used a window switch.
Midwestern Councel C Prepared class champion 2012
North Suburban Sports Car Club C Prepared class champion 2012
HSAX Instructor

GET YOUR E3P GEAR HERE: http://www.cafepress.com/e3pgearshop
toointoxicated62
I <3 E30's
Posts: 379
Joined: Sun Aug 29, 2010 5:26 pm
AntiSpam: No

Re: E36 window switch to E30 sunroof mod

Postby toointoxicated62 » Fri Apr 01, 2011 2:26 pm

87e30 wrote:That reminds me... Every time I visit an e36 at the yards I forget to check the sunroof switch. Is it a regular one, or is it one of the ones that supposedly we can't use for our windows?


You can use any switch you like. But the large white and blue base switches are basically slice and solder and your good to go.


The one touch down switches are more complex then that.
User avatar
87e30
I <3 E30's
Posts: 2014
Joined: Wed Oct 27, 2010 5:25 pm
AntiSpam: No
Location: New Jersey

Re: E36 window switch to E30 sunroof mod

Postby 87e30 » Fri Apr 01, 2011 4:36 pm

toointoxicated62 wrote:
87e30 wrote:That reminds me... Every time I visit an e36 at the yards I forget to check the sunroof switch. Is it a regular one, or is it one of the ones that supposedly we can't use for our windows?


You can use any switch you like. But the large white and blue base switches are basically slice and solder and your good to go.


The one touch down switches are more complex then that.


What I meant was which type do they use for the sunroof? Is it one like the white or blue large base, or do they use a special one like the one touch or something?

btw, I'm determined to figure out a cheap way to wire up the one-touch switches for our cars. Shouldn't be much more than a relay and a few cheap components.
Schwarz 5-speed 87 325is (newest project)
Arktisblau 5-speed 86 325e (current DD)
Schwarz 5-speed 87 325e (parts car/LS1 swap?)
Gazellenbeige automatic 85 318i (70,000 miles)
Alpine white 5-speed 87 325is (my first e30, possibly for sale)
99 Suburban
toointoxicated62
I <3 E30's
Posts: 379
Joined: Sun Aug 29, 2010 5:26 pm
AntiSpam: No

Re: E36 window switch to E30 sunroof mod

Postby toointoxicated62 » Fri Apr 01, 2011 8:22 pm

micro controller and a relay done. lol
User avatar
M20_fever
Größter Vorsitzender
Posts: 11029
Joined: Fri Feb 27, 2009 1:28 pm
AntiSpam: No
Location: Northern IL

Re: E36 window switch to E30 sunroof mod

Postby M20_fever » Fri Apr 01, 2011 10:23 pm

what micro controller and relay?
Midwestern Councel C Prepared class champion 2012
North Suburban Sports Car Club C Prepared class champion 2012
HSAX Instructor

GET YOUR E3P GEAR HERE: http://www.cafepress.com/e3pgearshop
User avatar
87e30
I <3 E30's
Posts: 2014
Joined: Wed Oct 27, 2010 5:25 pm
AntiSpam: No
Location: New Jersey

Re: E36 window switch to E30 sunroof mod

Postby 87e30 » Sat Apr 02, 2011 6:24 am

Time to whip out my Radio Shack electronics learning lab and figure this out.
Schwarz 5-speed 87 325is (newest project)
Arktisblau 5-speed 86 325e (current DD)
Schwarz 5-speed 87 325e (parts car/LS1 swap?)
Gazellenbeige automatic 85 318i (70,000 miles)
Alpine white 5-speed 87 325is (my first e30, possibly for sale)
99 Suburban
