Postby e30 gangsta » Mon Feb 20, 2012 5:40 pm

On the wise fab kit you can't run a sway bar.
User avatar
Yoshi
Site Admin
Posts: 9093
Joined: Thu Feb 26, 2009 7:47 pm
AntiSpam: No
Location: North VA
Contact:

Re: Yoshi's Modded knuckle kit R&D

Postby Yoshi » Mon Feb 20, 2012 7:56 pm

it'd have to be M3 style
Status: HG repair. 488wtq though!
User avatar
e30orDie
I <3 E30's
Posts: 232
Joined: Mon Sep 13, 2010 3:02 pm
AntiSpam: No

Re: Yoshi's Modded knuckle kit R&D

Postby e30orDie » Wed Apr 18, 2012 3:42 pm

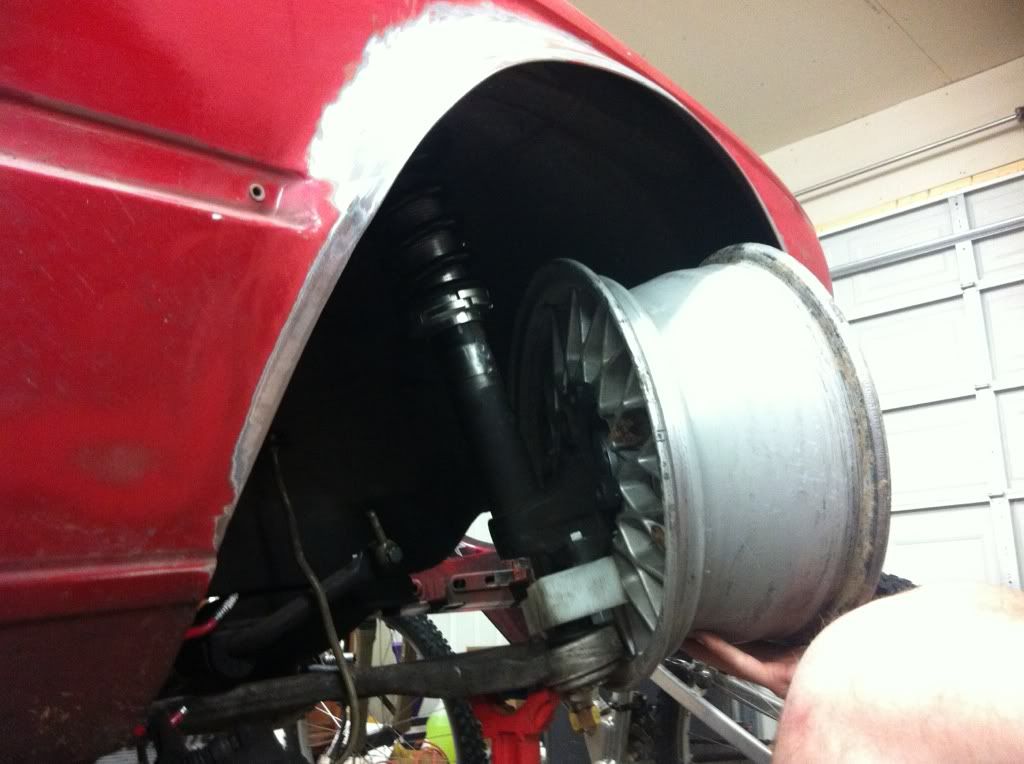

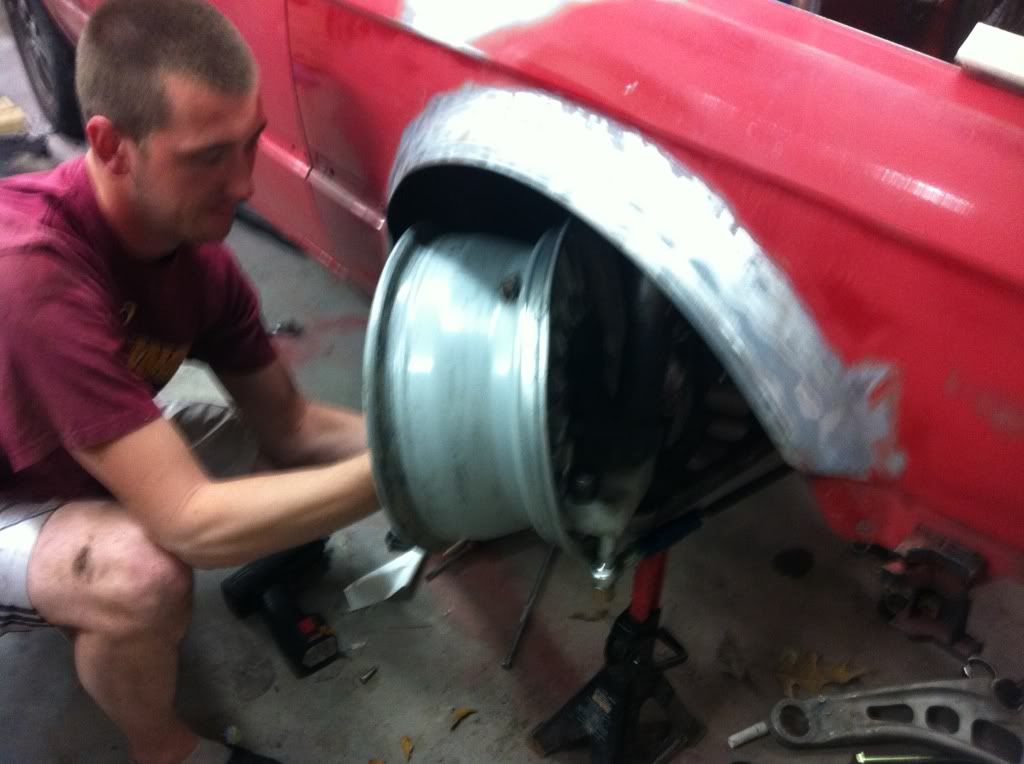

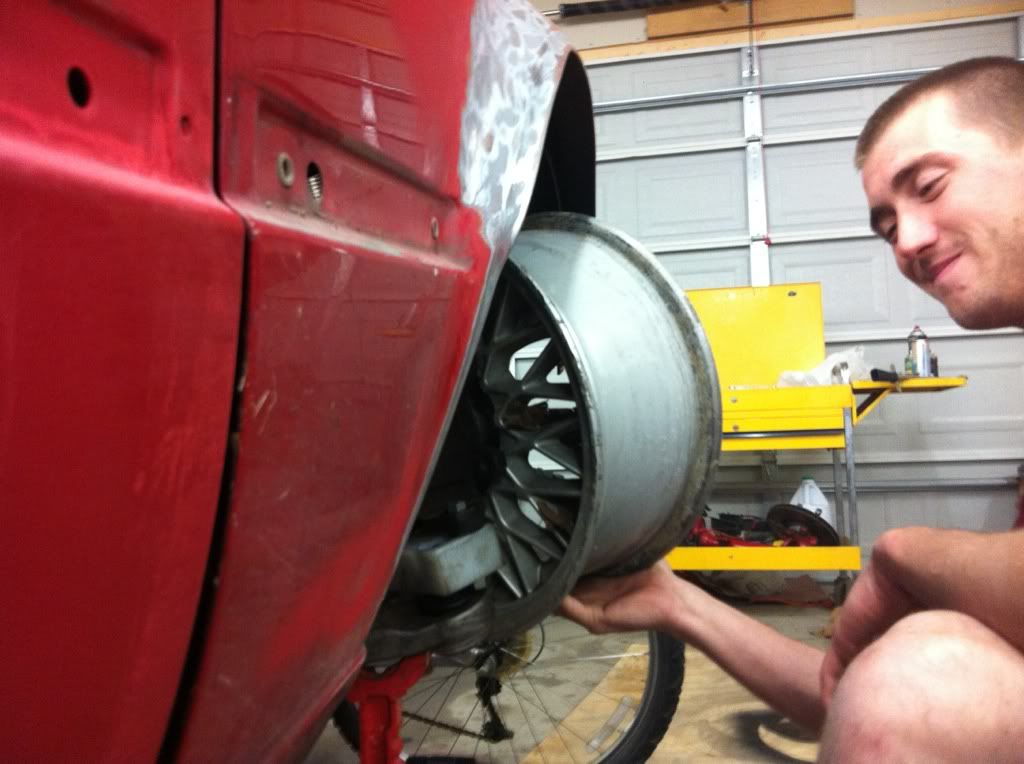

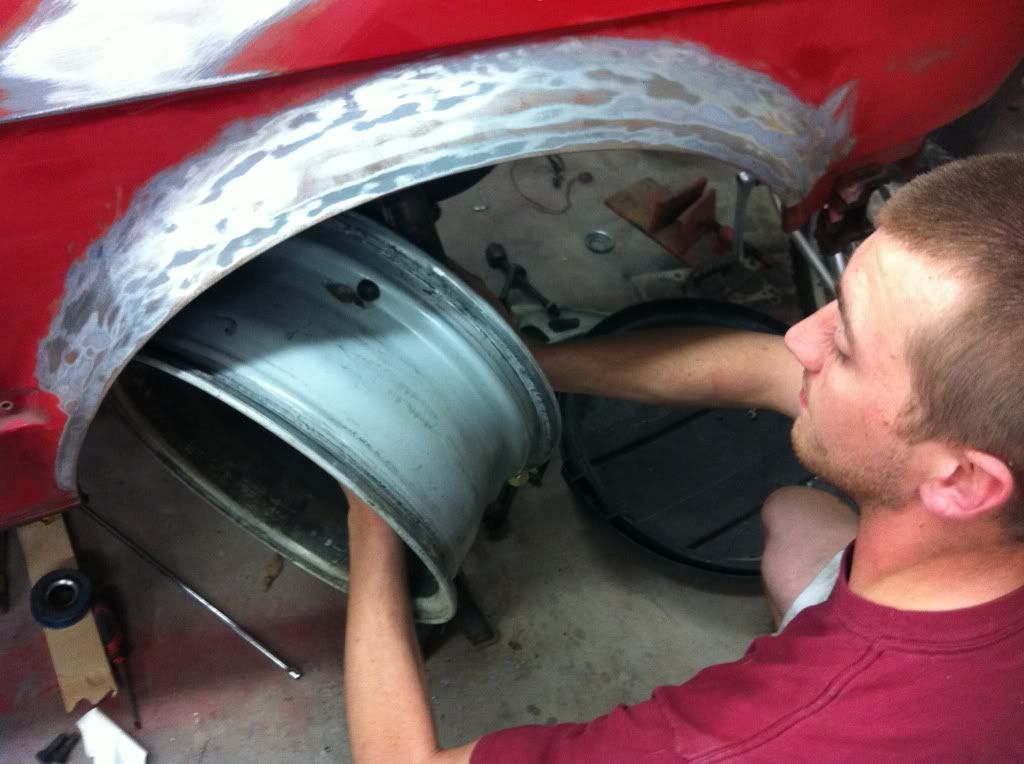

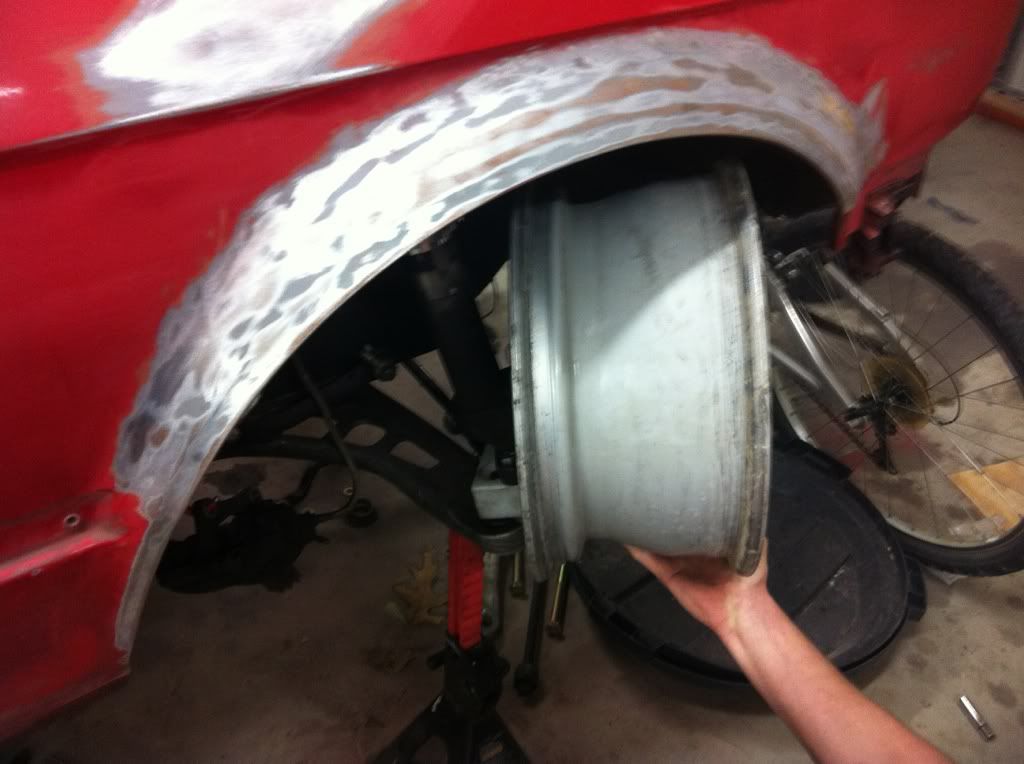

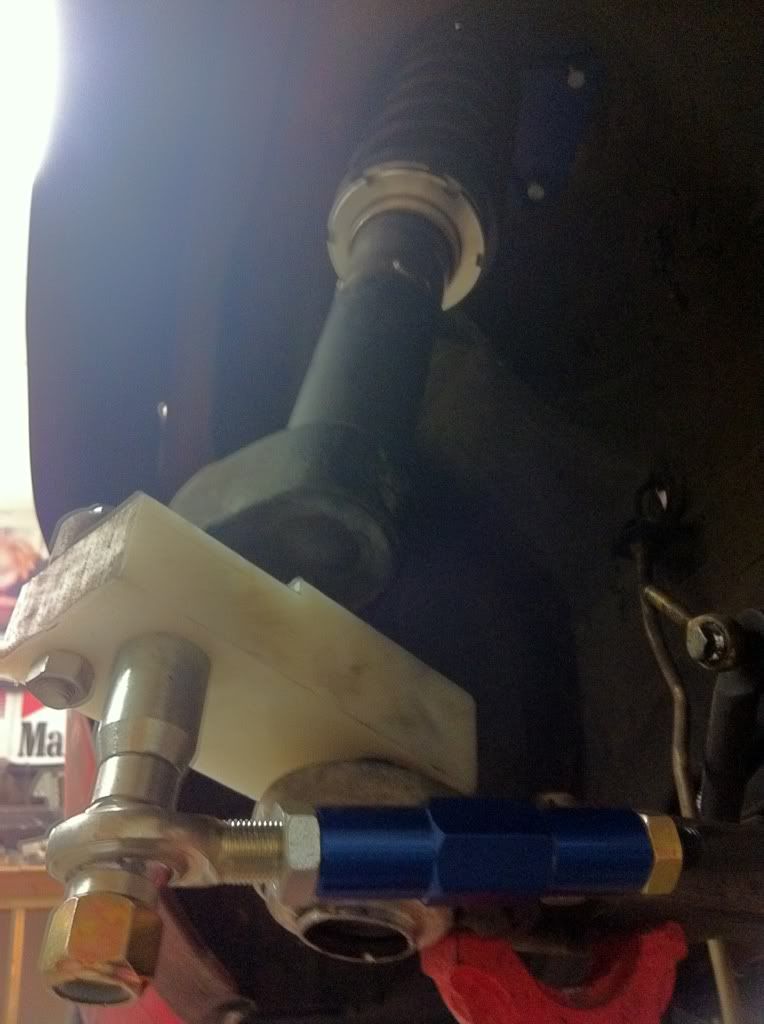

blehhhh lil teaser update... There's no hub on the test struts.... so wheel was just held up accordingly.

ALSO.... im not looking for "MORE" angle.... im really after ackerman correction, like what a dirt track or sport atv quad has at full lock. You will be able to see more angle at turn in (trailering tire) and that is what I have been after.

I did order my metal today though.












Currently sitting on the stock e46 joints, as I am still waiting on the others.


On a side note, that will disappoint yoshi.... I have eliminated tapers..... Everything will be 5/8'' high grade bolts. NO TAPERS


Reasoning being.... cost.... The cost of machining OUR**** tapers is gonna be rediculous... Ive been digging through taper cutter (for the machine shop) and.... haven't found any.... and Im kinda glad, at about 350$ a cutter................... which what happens when one breaks, or wears out? the cost of a kit would go up significantly due to these cutters-

but as of right now, I should be able to make these kits extremely DIY easy and cheap. IF I end up selling these, It'll be just the block, the strut mounts, and the press in bearing sleeve for the e46 arms. I will then provide everyone will the part numbers to the high misalignment bearings, and tie rods...... SO, that IF you NEED to replace one.... you can do it on your own, without having to wait or get a hold of me. To me this is the beauty behind it.... all joints will be able to be replaced BY YOU, ordering them on YOUR OWN. (I of course, can send you them as well.... but there is no need)

I'll have about 500$ in this kit by the time I test it. However, once everything test out fine this summer, I will be able to cut that price down by about 200$ I hope :D
User avatar
Yoshi
Site Admin
Posts: 9093
Joined: Thu Feb 26, 2009 7:47 pm
AntiSpam: No
Location: North VA
Contact:

Re: Yoshi's Modded knuckle kit R&D

Postby Yoshi » Wed Apr 18, 2012 6:02 pm

looks promising. boo with all the custom parts though lol.

keep it up!
Status: HG repair. 488wtq though!
User avatar
Nsquared97
I <3 E30's
Posts: 2889
Joined: Mon Jul 25, 2011 7:08 pm
AntiSpam: No
Location: Grand Rapids, MI

Re: Yoshi's Modded knuckle kit R&D

Postby Nsquared97 » Thu Apr 19, 2012 1:18 am

Really cool to see poepl putting this kind of effort into developing stuff for E30's, keep up the good work!
metris228
n00b
Posts: 1
Joined: Tue Nov 20, 2012 3:26 am
AntiSpam: No

Re: Yoshi's Modded knuckle kit R&D

Postby metris228 » Tue Nov 20, 2012 4:47 am

e30orDie wrote:
e36 outer (current)


Part Number: NCP 2693048
Product Line: NAPA Chassis Parts

Attributes:
Large Diameter Taper (Dimension B) : .55"
Length (Dimension F) : 8.5"
Right or Left Hand Threads : RH
Rod End Thread (Dimension A) : M14 - 1.5
Small Diameter Taper (Dimension C) : .5"
Taper Length (Dimension D) : .5"
Thread Type : Female


e9x inner (current)

Part Number: NCP 2693614
Product Line: NAPA Chassis Parts

Attributes:
Overall Length (Dimension D) : 10.97"
Rack End Thread (Dimension A) : M18 - 1.5
Rod End Thread (Dimension E) : M14 - 1.5
Socket Flat O.D. (Dimension B) : 1.48"
Type : 2



Hey mate, do you know what the taper details are for the control arms inner and outer ball joints?
Or do you know where I can find them?
User avatar
Yoshi
Site Admin
Posts: 9093
Joined: Thu Feb 26, 2009 7:47 pm
AntiSpam: No
Location: North VA
Contact:

Re: Yoshi's Modded knuckle kit R&D

Postby Yoshi » Mon Mar 18, 2013 12:11 pm

bueler....
Status: HG repair. 488wtq though!
User avatar
M20_fever
Größter Vorsitzender
Posts: 11029
Joined: Fri Feb 27, 2009 1:28 pm
AntiSpam: No
Location: Northern IL

Re: Yoshi's Modded knuckle kit R&D

Postby M20_fever » Mon Mar 18, 2013 12:41 pm

Why bump?
Midwestern Councel C Prepared class champion 2012
North Suburban Sports Car Club C Prepared class champion 2012
HSAX Instructor

GET YOUR E3P GEAR HERE: http://www.cafepress.com/e3pgearshop
User avatar
Yoshi
Site Admin
Posts: 9093
Joined: Thu Feb 26, 2009 7:47 pm
AntiSpam: No
Location: North VA
Contact:

Re: Yoshi's Modded knuckle kit R&D

Postby Yoshi » Mon Mar 18, 2013 12:57 pm

I might actually know someone around here that can make this for me. Or I wanted to see how E30orDie was doing with his.
Status: HG repair. 488wtq though!
Ciclajbek
E30 Guy
Posts: 34
Joined: Thu Dec 22, 2011 9:55 pm
AntiSpam: No

Re: Yoshi's Modded knuckle kit R&D

Postby Ciclajbek » Wed May 15, 2013 4:36 pm

does someone know how much excatly wisefab control arm is longer than stock one?

friend of mine and I are playing with waterjet these days and here is what we made, but dunno how much wheel goes out


User avatar
Yoshi
Site Admin
Posts: 9093
Joined: Thu Feb 26, 2009 7:47 pm
AntiSpam: No
Location: North VA
Contact:

Re: Yoshi's Modded knuckle kit R&D

Postby Yoshi » Wed May 15, 2013 4:58 pm

it's supposed to be like an inch longer on each control arm than the E46 one. I think the E46 one is 1 inch longer than stock. So... 2 inches? IE 50mm
Status: HG repair. 488wtq though!
Ciclajbek
E30 Guy
Posts: 34
Joined: Thu Dec 22, 2011 9:55 pm
AntiSpam: No

Re: Yoshi's Modded knuckle kit R&D

Postby Ciclajbek » Thu May 16, 2013 6:55 am

their site says ~100mm per side, but I need exactly measure... e46 are cca 35mm longer....SLR kit is 57mm longer, and wisefab is longer than SLR

new adapters on 3 holes for e36

User avatar
Yoshi
Site Admin
Posts: 9093
Joined: Thu Feb 26, 2009 7:47 pm
AntiSpam: No
Location: North VA
Contact:

Re: Yoshi's Modded knuckle kit R&D

Postby Yoshi » Thu May 16, 2013 11:09 am

I don't think any of us have the wisefab kit so we can't say for sure. Will those adapters work on E30s???
Status: HG repair. 488wtq though!
Ciclajbek
E30 Guy
Posts: 34
Joined: Thu Dec 22, 2011 9:55 pm
AntiSpam: No

Re: Yoshi's Modded knuckle kit R&D

Postby Ciclajbek » Thu May 16, 2013 3:14 pm

e30 must have adapters on 4 holes, we have made them too, but we didn't made a "teeth" on surface because e30 knuckle has diferent heights of screws for CA and tie rod
User avatar
Yoshi
Site Admin
Posts: 9093
Joined: Thu Feb 26, 2009 7:47 pm
AntiSpam: No
Location: North VA
Contact:

Re: Yoshi's Modded knuckle kit R&D

Postby Yoshi » Thu May 16, 2013 3:35 pm

sell me a set?
Status: HG repair. 488wtq though!
