Project Phoenix - A Chevelle rises from the ashes

Postby M20_fever » Sat Dec 10, 2011 9:53 pm

Well today was the day I mustered up enough motivation, and help, to get started on the tear down of the Chevelle. For those of you new here, my Wife had a little fender bender in our '72 Chevelle, which will require a little massaging. :)

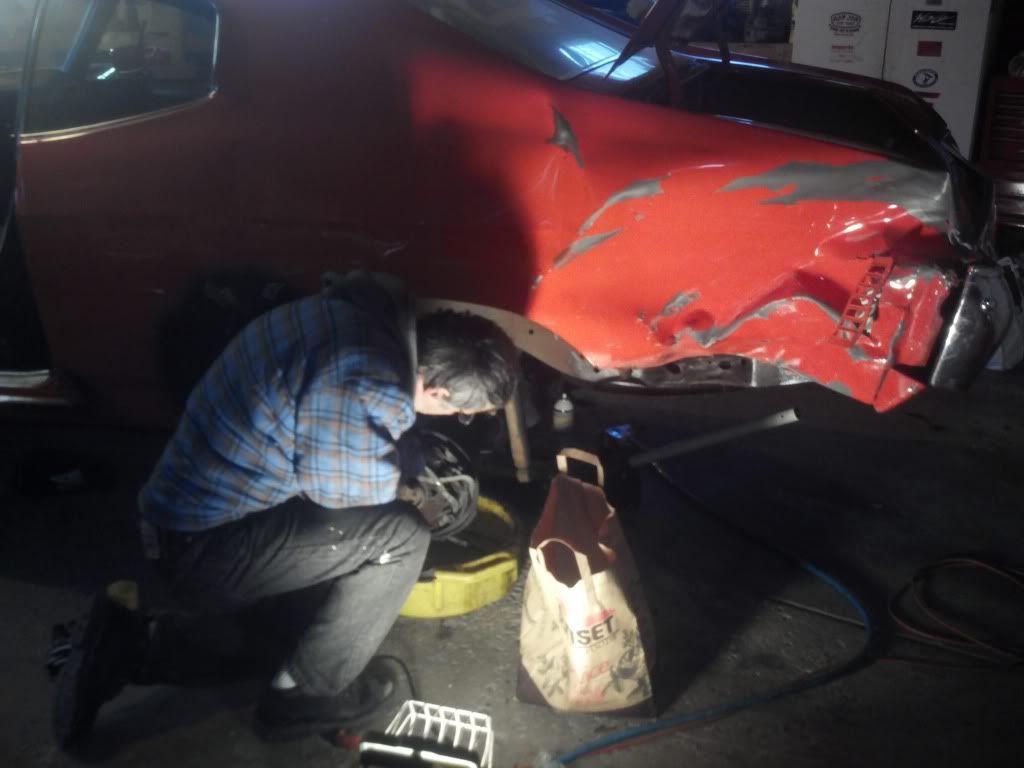

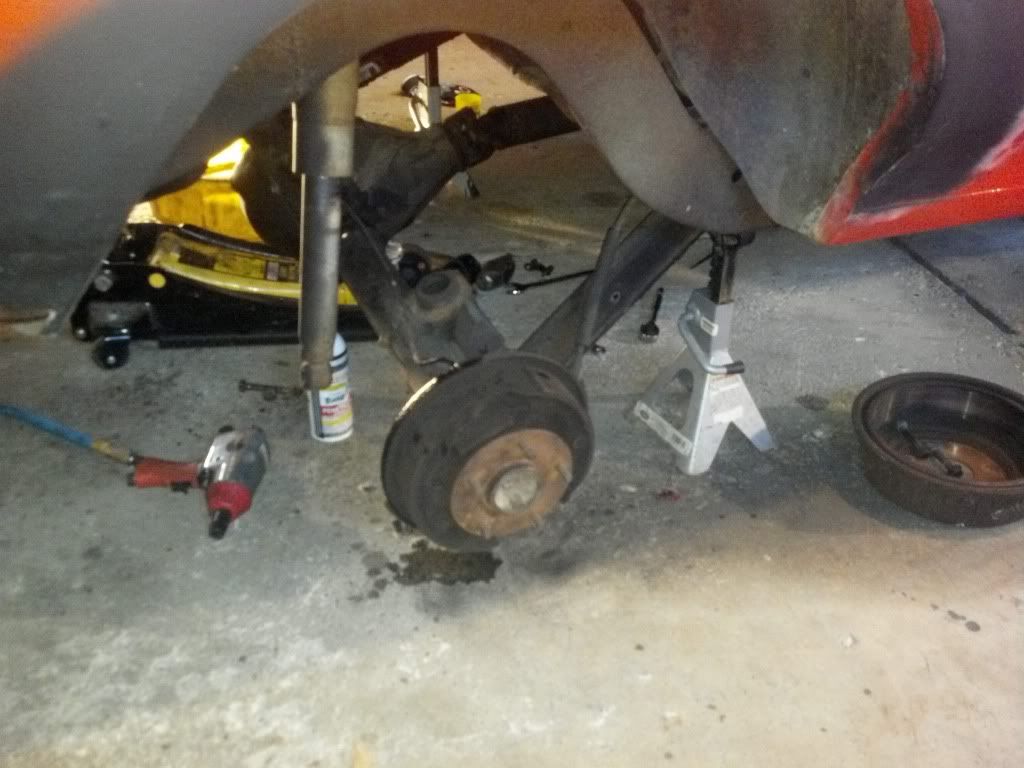

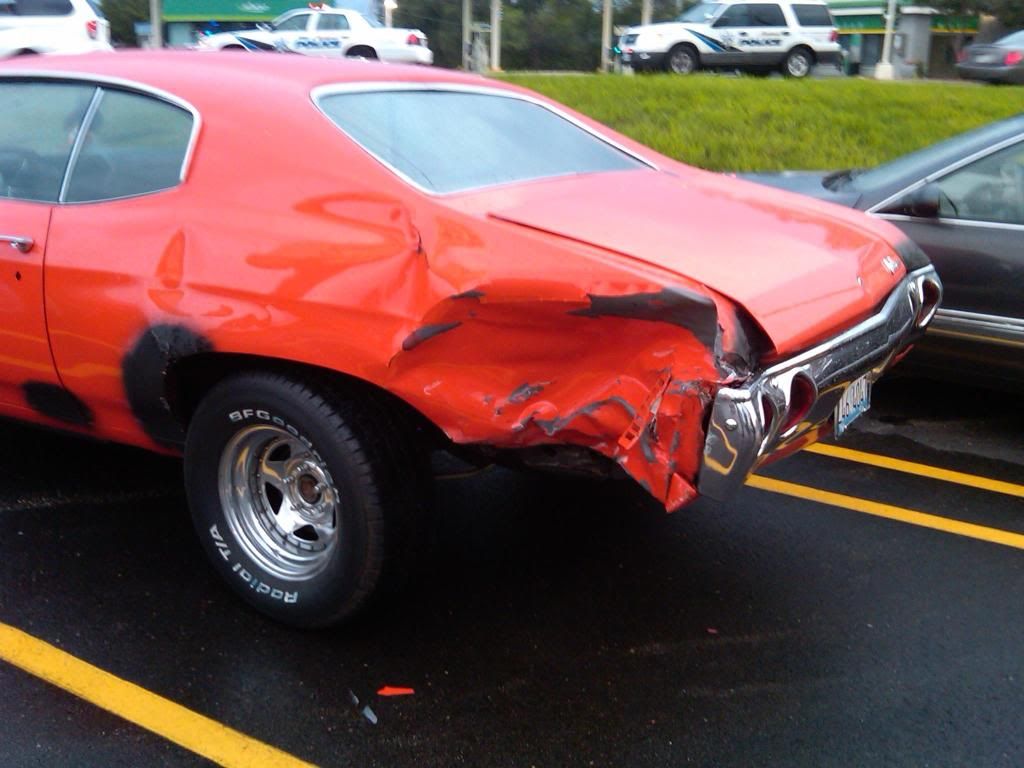

The day it happened.

The frame is bent in several places, and as you can see the rear end was shifted pretty bad.

What needs to be replaced:
New control arms top and bottom
New axle
New fuel tank (cell)
New rear brake lines
New soft fuel lines
New rear quarters both sides, full sail panels
New trunk pan
New shocks all around
New front and rear springs

Whats getting replaced "since I'm already this deep":
New front quarters
New high rise cowl hood
New front and rear bumpers
Rear disc brake conversion

Plan is to get the rear end rebuilt and the disc conversion installed, get the rear end reinstalled with the new control arms and pull some string measurements to see how tweaked the frame really is. Then its off to the frame shop to get straightened.

Once it gets back from the frame shop I'll cut all the new sheet metal in, then it goes to the body shop for a full paint job. Color is going to stay the same, but I'm having a pearl clear laid over it.

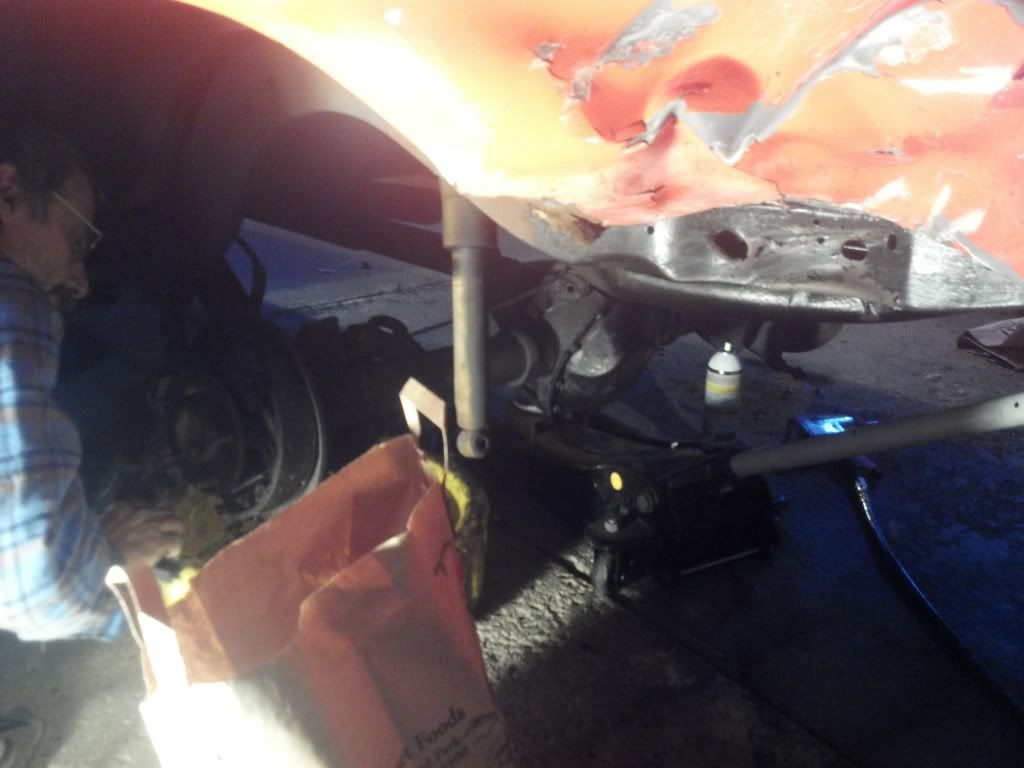

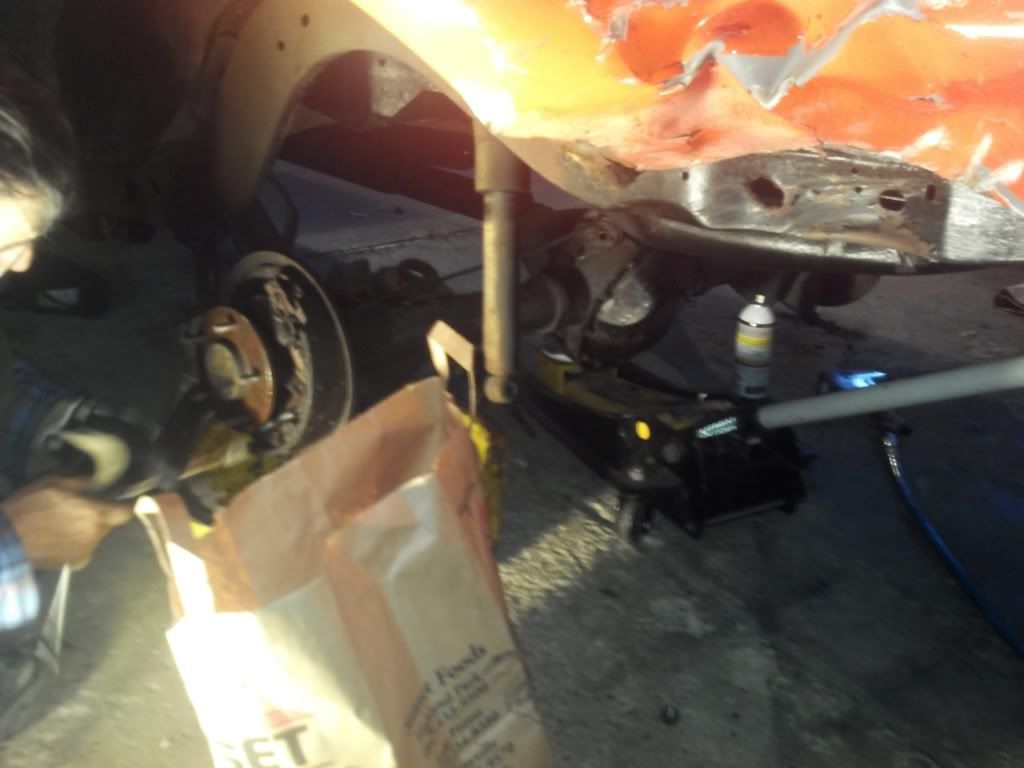

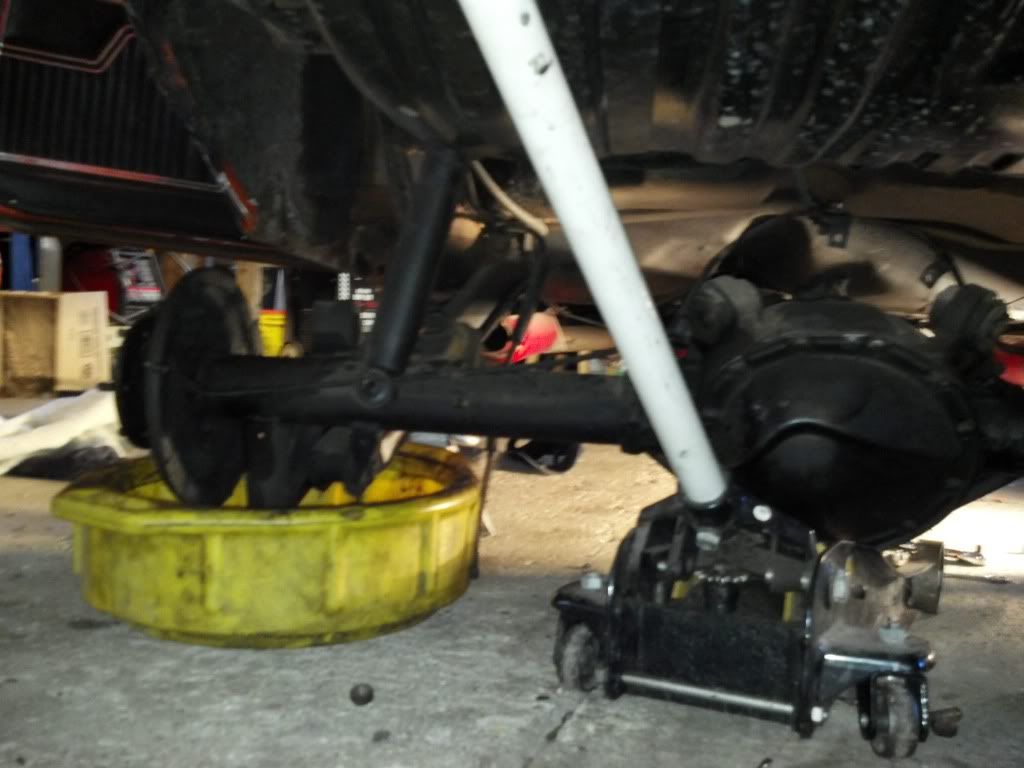

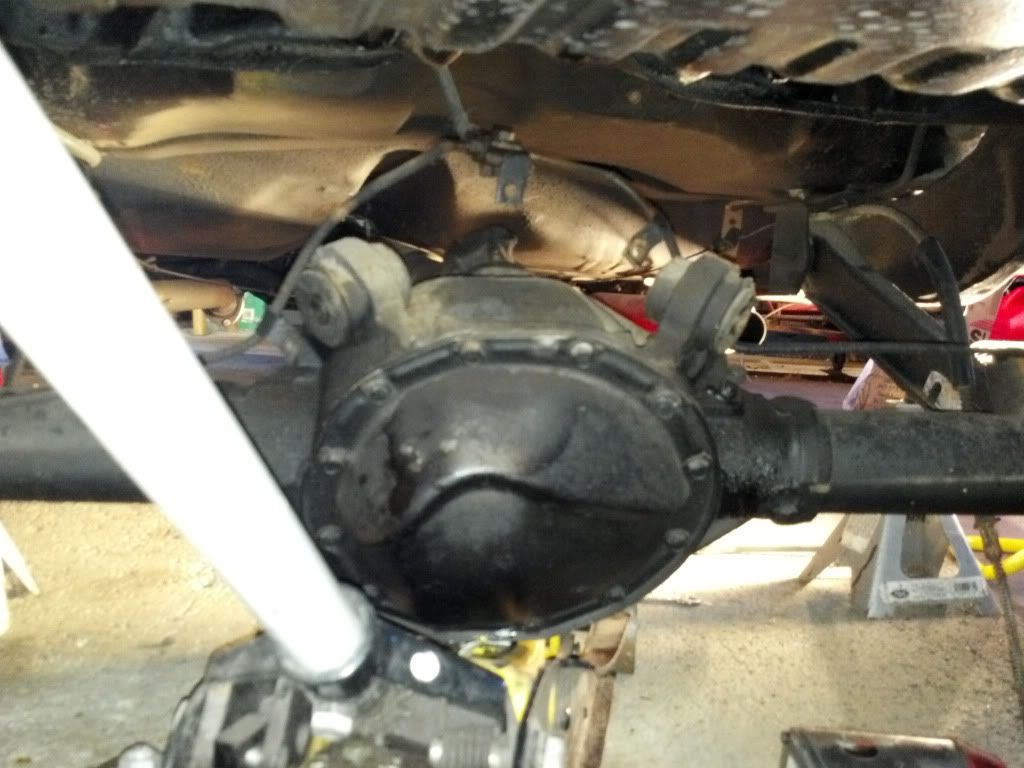

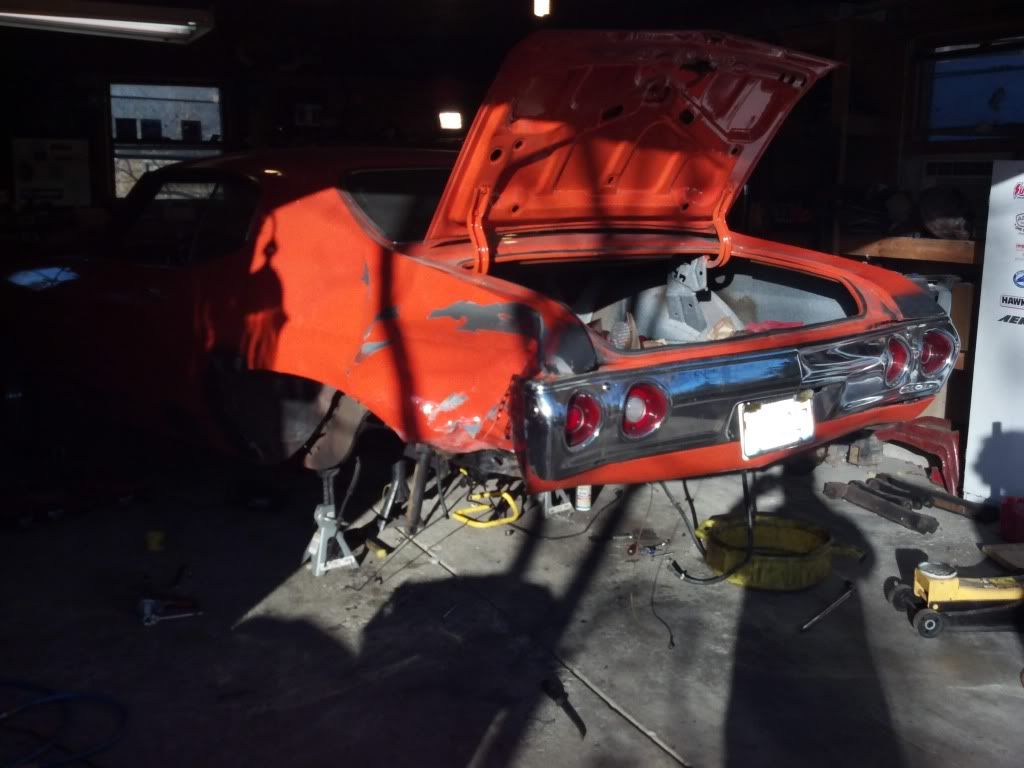

Today I got the rear end pulled, fuel tank out, and old control arms out. The rear end goes to Dick Strange this week for a full rebuild and new axle, then it goes back in the car.

onto the pics!

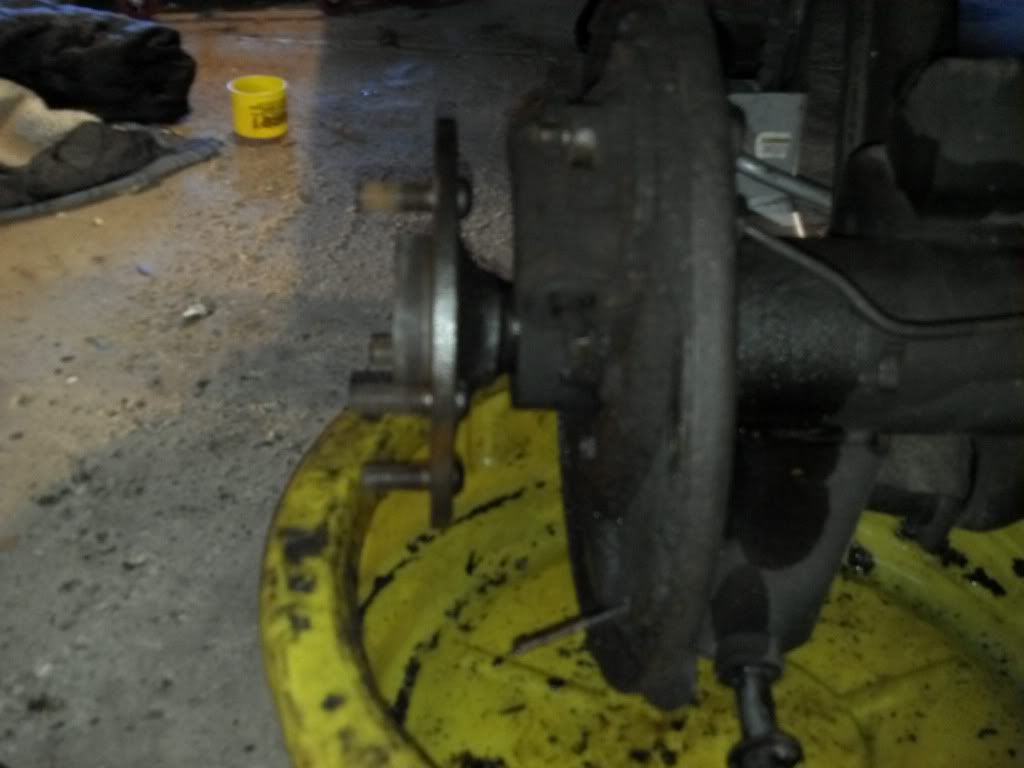

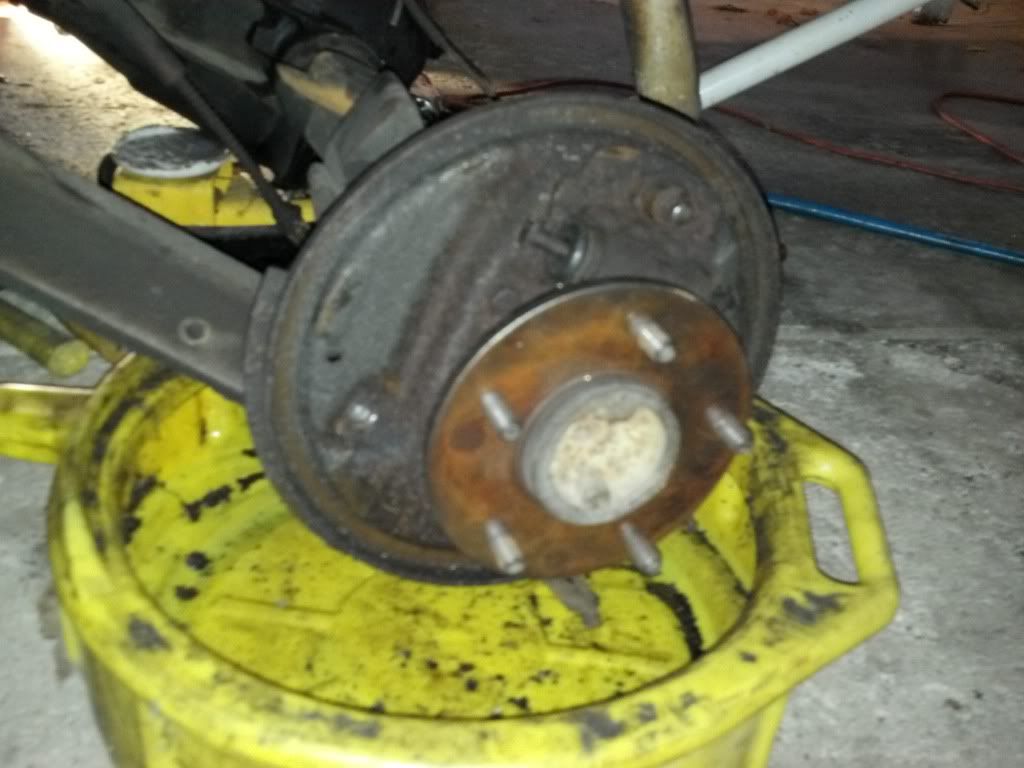

You can kinda see how the axle is bent where the wheel flange meets the axle shaft

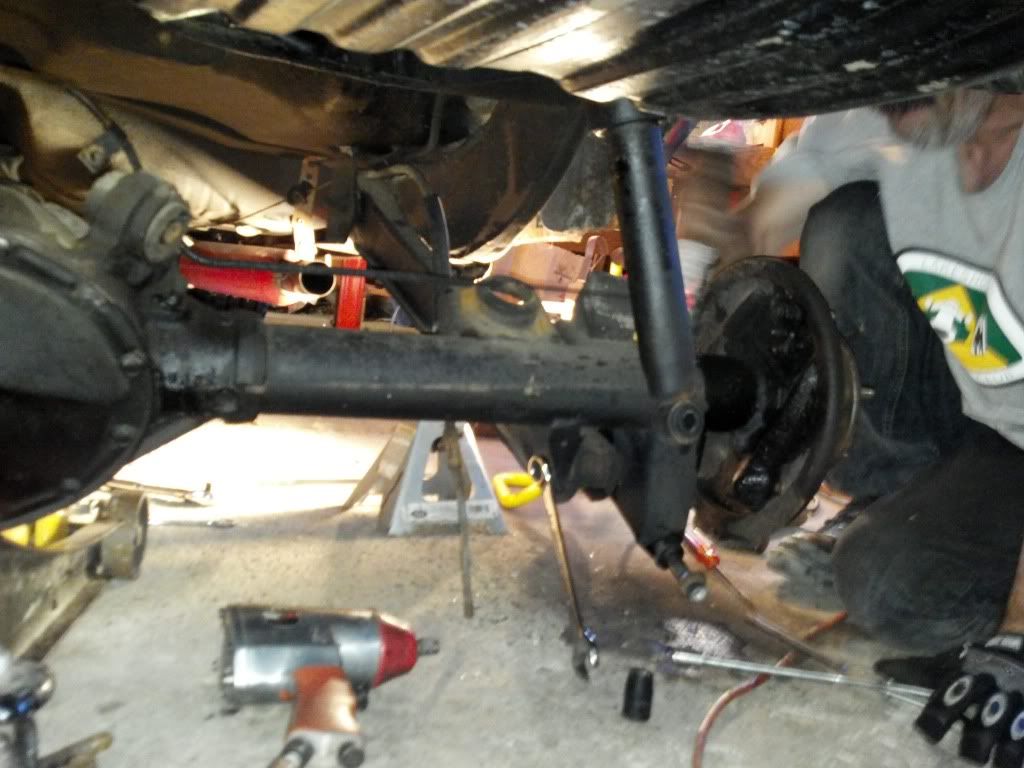

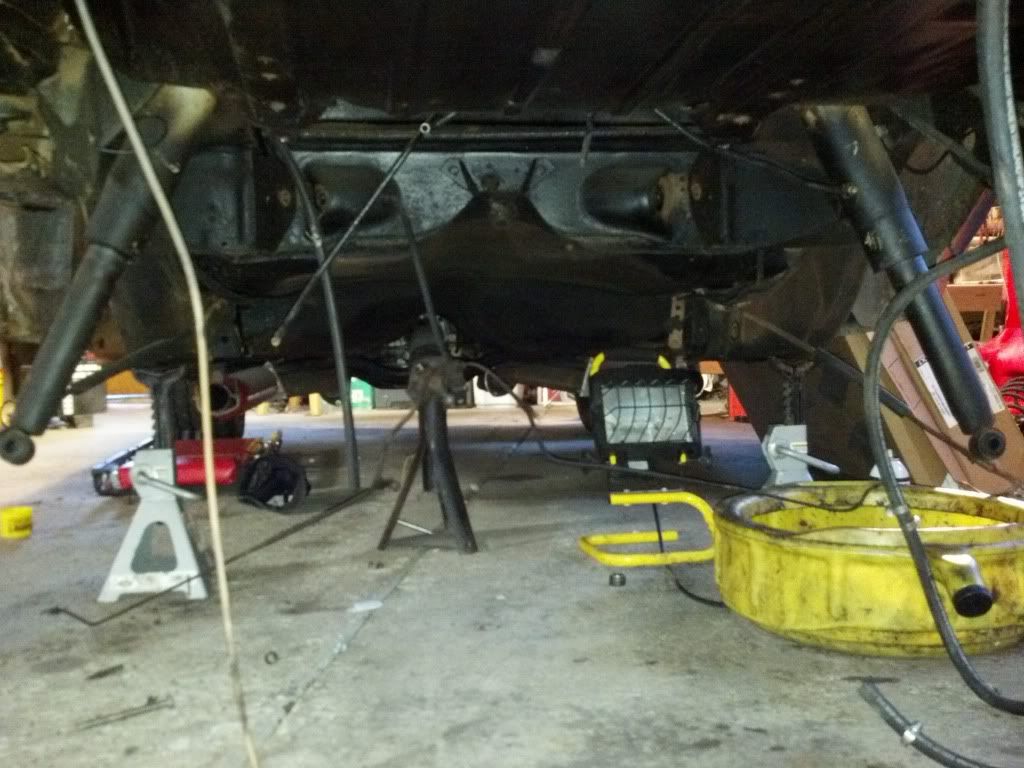

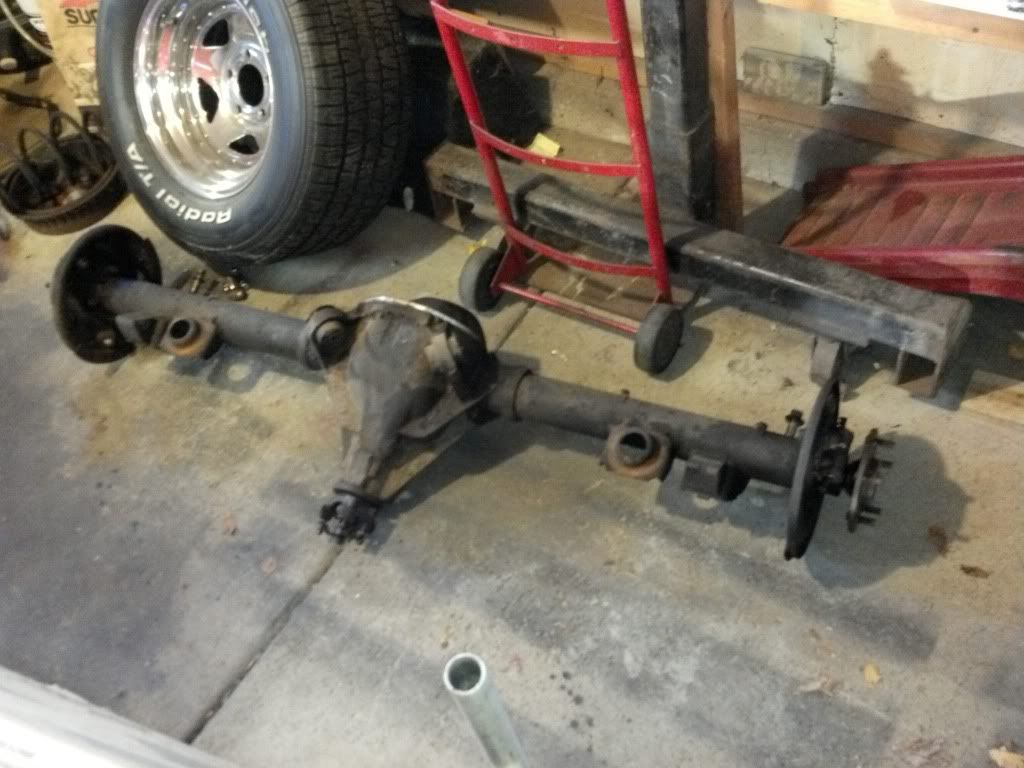

rear end liberated!

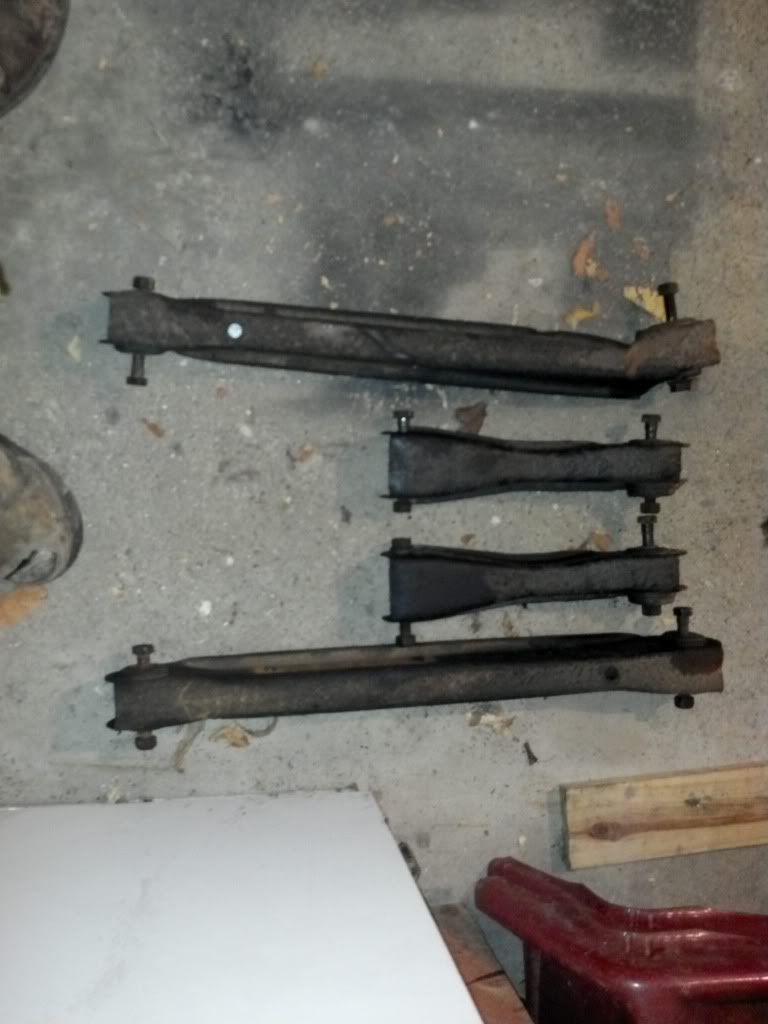

old control arms, do you see a problem? :) These were stock stamped units that were boxed and welded, it bent right where the welded plate ended.

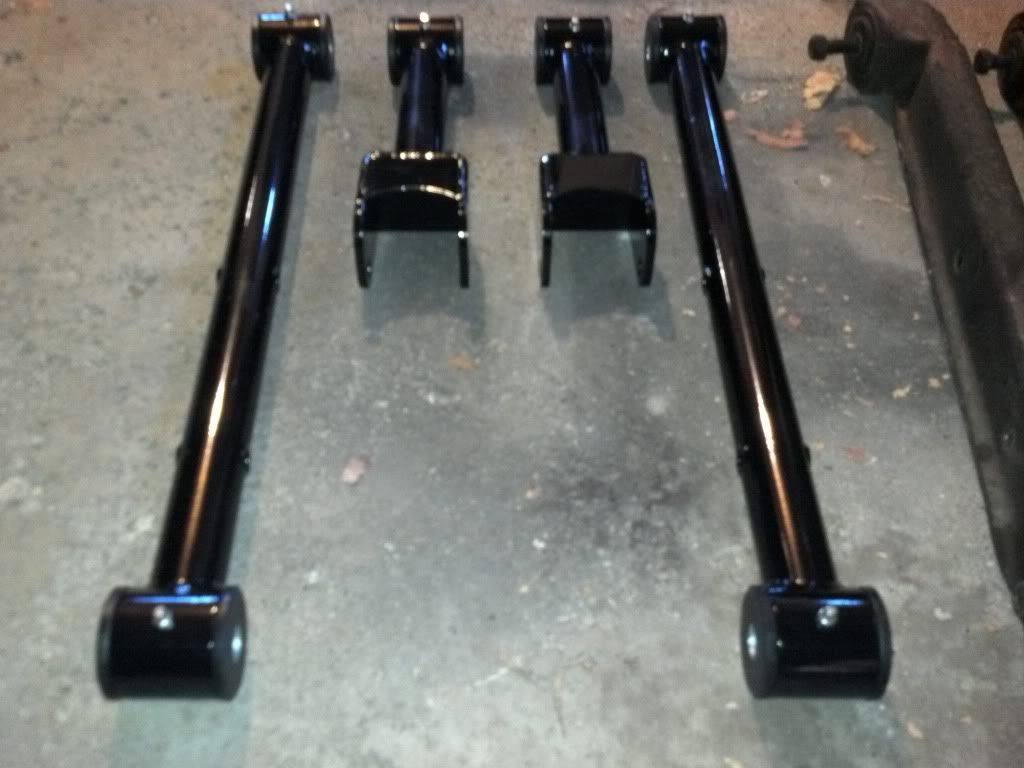

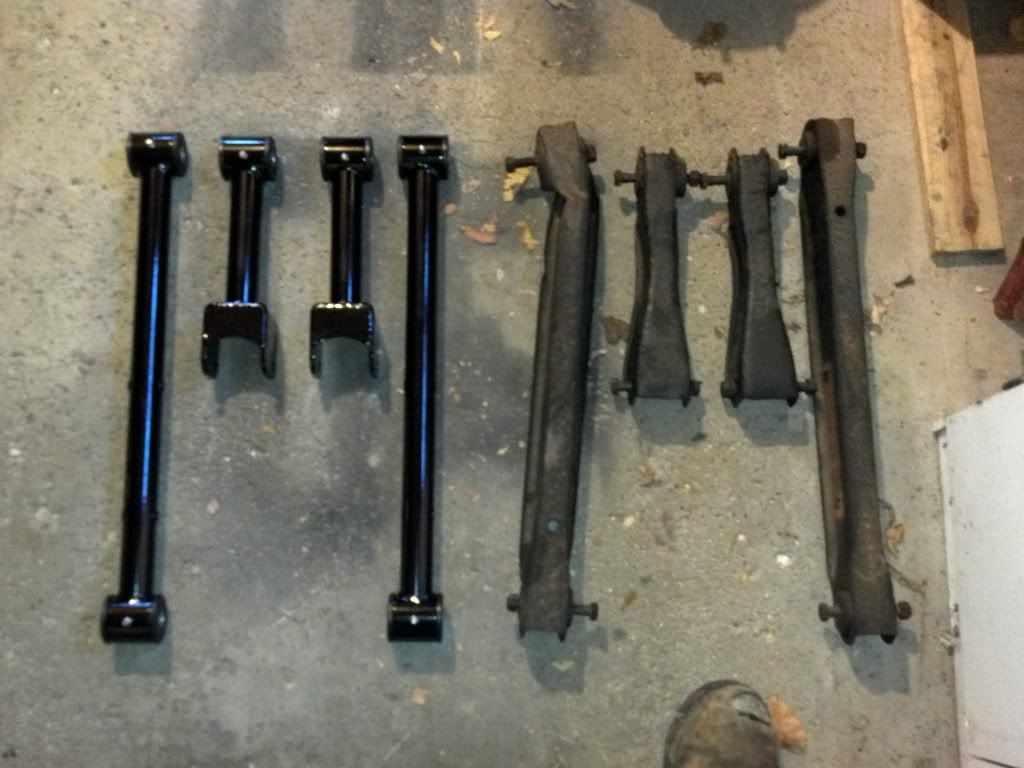

The new control arms, full tig welded tubular with zirk fittings. :twisted:

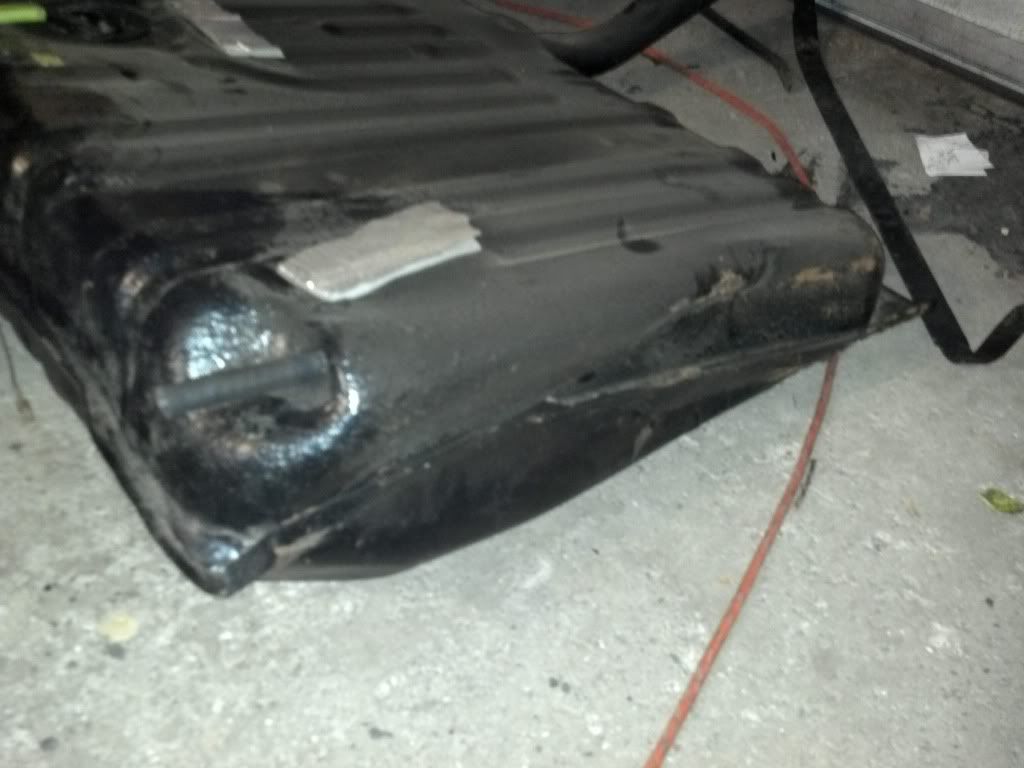

I just refurbished this tank and installed a return line for the fuel injection, but its junk now...A fuel cell in the trunk will be the replacement.

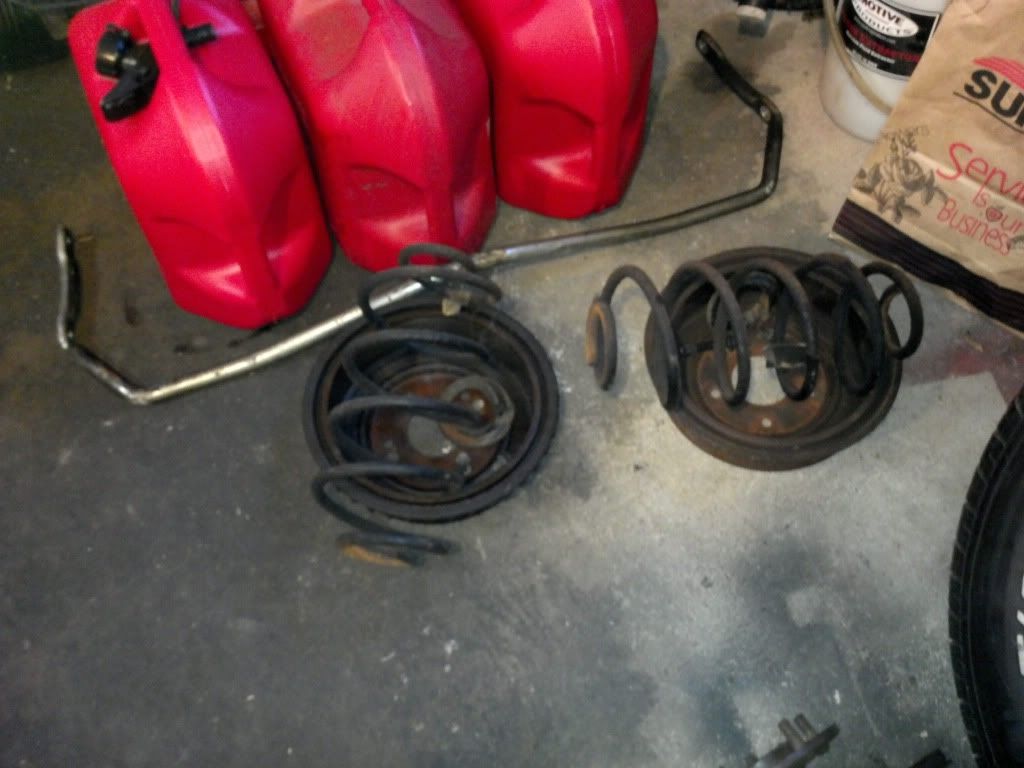

The only thing being reused in this pic is the sway bar.

Hopefully I'll have some progress to report before Xmas, either way I'll keep this thread updated as the project moves along. I'll also be using my digital camera since I can't seem to get decent pics out of my new phone...
